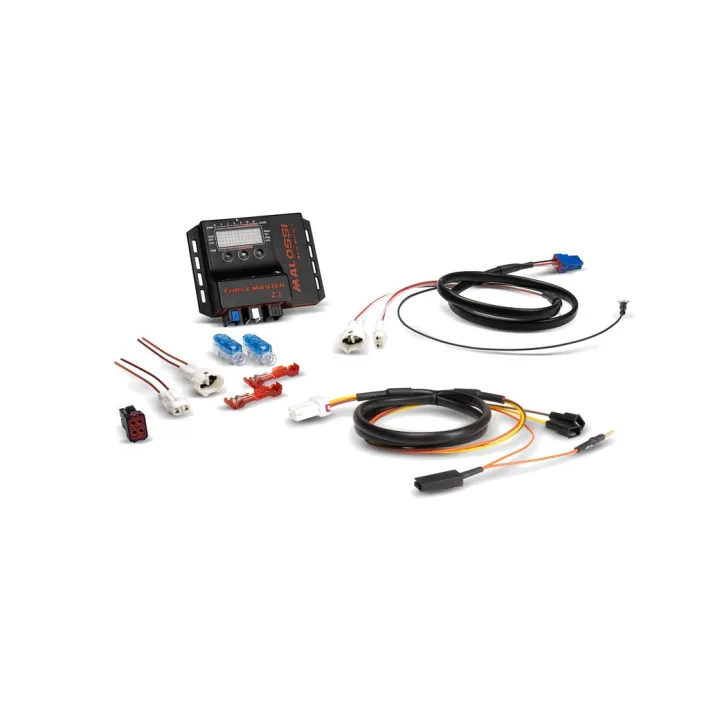

MALOSSI electronic control unit FORCE MASTER 2.1 1138483

Automatically generated translation
Original source text
With a refreshed look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and user-friendly has always been a Malossi goal: Force Master 2.1 is a contemporary, responsive, and high-performance product. With an interface for K and CAN communication lines, a new user interface, and the additional capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical characteristics - Carburetor adjustment - ± 14% in min/med/max - Rev limiter: + 11,100 RPM - Temperature range = -30°C +80°C - Minimum operating voltage = +7V - Maximum operating voltage = +16V - Average absorbed current < -200 mA - Environmental protection = IP65 - 4 different power curves: - curve 0: original exhaust, Malossi cylinder, original cylinder head, original camshaft, original filter - curves 1-2-3: adjustment values to zero Complete control of the carburettor is obtained by combining the O2 controller with the Force Master ECU. The synergy of these two devices knows no bounds, the entire plan is managed, controlled and optimized for any processing step proposed by Malossi. Products intended solely for competitions in the locations designated for this purpose and in accordance with the provisions of the relevant sporting authorities. We do not accept any responsibility for misuse.
