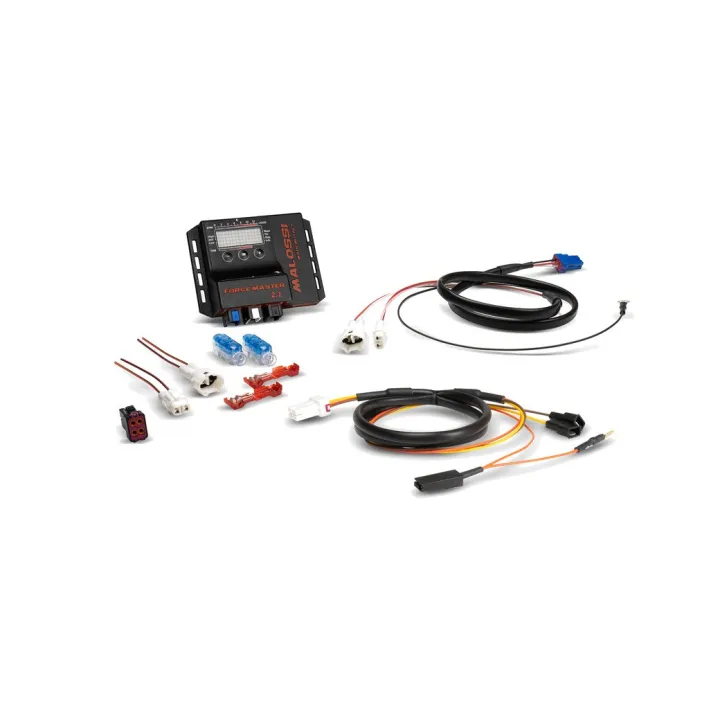

MALOSSI electronic control unit FORCE MASTER 2.1 1138480

Automatically generated translation
Original source text
Description With a refreshed look, the Force Master 2.1 control unit is much easier to configure. Making products easy to use has always been one of Malossi's goals: Force Master 2.1 is a contemporary, streamlined, and powerful product. With an interface for K and CAN communication lines, a new user interface, and the additional capacitive ignition connection, Force Master 2.1 is the ideal addition to vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical characteristics Carburetor adjustment ± 14% in min/med/max Speed limiter: + 500 rpm Temperature range: -30°C +80°C Minimum operating voltage: +7 V Maximum operating voltage: +16 V Average current consumption: <-200 mA Environmental protection: IP65 4 different power curves: Curve 0: Malossi exhaust without db-killer, original cylinder, original cylinder head, original camshaft, original filter Curve 1: original exhaust, original cylinder, original cylinder head, original camshaft, original filter Curve 2: Malossi exhaust without db-killer, Malossi cylinder, original cylinder head, original camshaft, original filter Curve 3: Malossi exhaust without db-killer, Malossi cylinder, original cylinder head, original camshaft, original filter Total control of the carburetor is achieved by combining the O2 Controller with the Force Master ECU. The synergy between these two devices is limitless, with the entire specified level being managed, controlled, and optimized for each processing step proposed by Malossi. Products intended solely for competitions in designated locations and in accordance with the provisions of the relevant sports authorities. We do not accept any liability for improper use.
