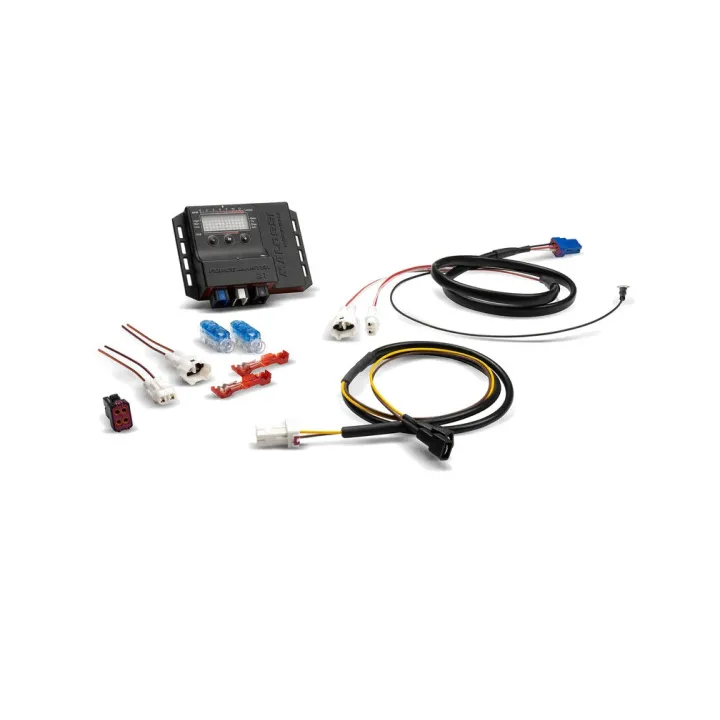

MALOSSI electronic control unit FORCE MASTER 2.1 1129977

Automatically generated translation
Original source text
With a completely new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and user-friendly has always been a Malossi goal: the Force Master 2.1 is a contemporary, responsive, and high-performance product. With an interface for K and CAN communication lines, a new user interface, and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter.
Technical details
Carburation adjusting
± 14% LOW / HIGH / MEDIUM
Limiter of RPM: +1.000 RPM
TEMPERATURE RANGE = -30°C +80°C
Minimum operating voltage = +7V
Maximum operating voltage = +16V
Average current consumption <-200mA
Environmental protection = IP65
2 different maps:
Curve 0 - Yamaha X Max 125 ie 4T LC Euro 5: original exhaust system, Malossi cylinder, original head, original camshaft, original filter
Curves 1 - Yamaha N Max 125 ie 4T LC Euro 5: original exhaust system, Malossi cylinder, original head, original camshaft, original filter
Complete carburetion control is achieved by combining the O2 controller with the Force Master control unit. The synergy between these two devices is limitless; the entire layout is managed, controlled, and optimized for any processing step proposed by Malossi.
Products intended exclusively for competition use in designated locations and in accordance with the regulations of the relevant sports authorities. We are not responsible for misuse.
