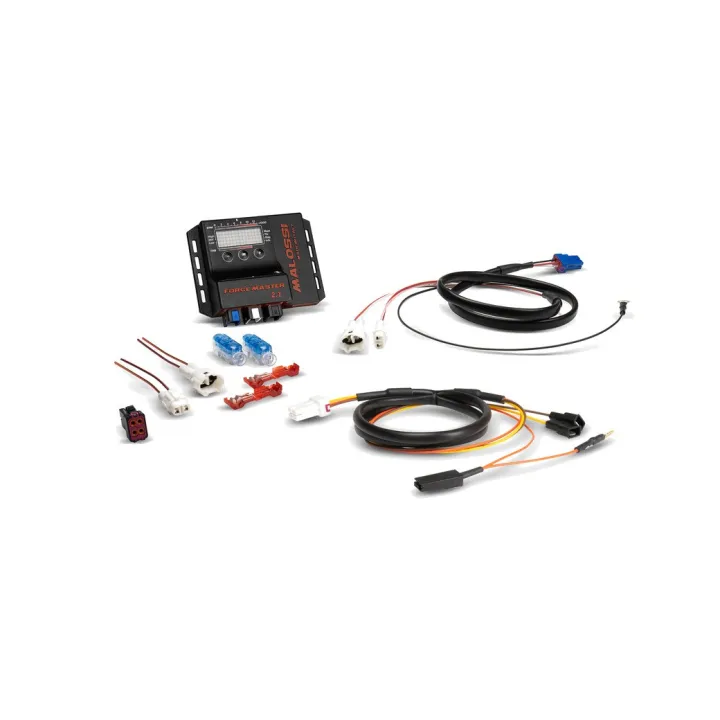

MALOSSI electronic control unit FORCE MASTER 2.1 1129829

DESCRIPTION
The Force Master 2.1 engine control unit has a completely new look and is much easier to configure. One of Malossi's goals is to offer more ergonomic and user-friendly products: Force Master 2.1 is a contemporary, practical, and high-performance product. With an interface for the K and CAN communication lines, a new user interface, and the addition of an input for capacitive ignition, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter.
Technical specifications
Carburation regulation
Adjustment

± 14% at min/medium/max
Rev limiter : + 600 RPM
TEMPERATURE RANGE = -30 °C +80 °C
Minimum operating voltage = +7V
Maximum operating voltage = +16V
Average current absorbed <-200mA
Environmental protection = IP65
2 different power curves:
Curve 0: Malossi exhaust with DB killer, original cylinder, original cylinder head, original camshaft, original filter
Curve 1: Malossi exhaust without DB killer, original cylinder, original cylinder head, original camshaft, original filter
Complete carburetion control is achieved by combining the O2 controller with the Force Master ECU. The synergy between these two devices is limitless; the entire system is managed, controlled, and optimized for any processing step proposed by Malossi.
Products reserved exclusively for competitions at designated venues, in accordance with the regulations of the competent sports authorities. We disclaim all liability for improper use.
