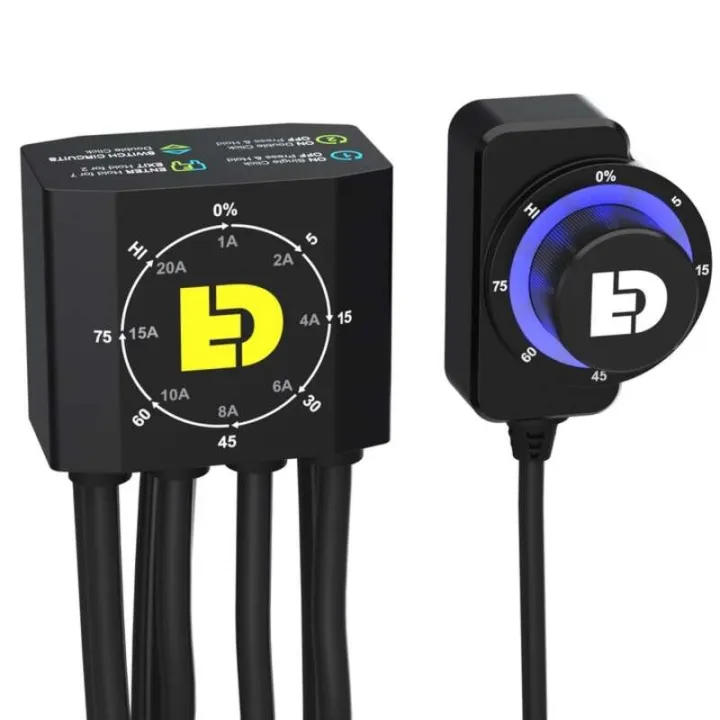

DENALI lighting controller DIALDIM 1107231

DialDim™ Lighting Controller

Allows you to sell a complete solution with easy control of all lighting functions

Independently turn on/off and dim two sets of auxiliary lights from a single switch

LED halo switch shows your exact setting

Unlock smart flash features that can cancel your auxiliary lights with your turn signal, flash your auxiliary lights like a turn signal, or turn on your lights when the horn sounds.

power on/off and dimming

Independently control the on/off of two sets of lights and the intensity level with the single DialDim™ switch. The blue halo controls light kit one and the green halo controls light kit two. Double click to switch between the two circuits.

High/Low Sync

Your auxiliary lights will automatically switch between the selected dim setting and full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle's high beam circuit to enable this feature.

Stealth mode

A smart 0% dimming setting on the switch allows the lights to be “off” during normal driving conditions, but will jump to 100% dim with your vehicle's high beam switch. The lights will also react to turn signal and horn inputs in this mode, but will remain off when no inputs are detected.

Cancel with turn signal

When enabled, the headlights (blue circuit 1) will cancel in sync with your signal to avoid "washing" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle's turn signal circuit to enable this feature.

Flash as turn signal

When enabled, your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle's turn signal circuit to enable this feature.

strobe light with horn

When enabled, your auxiliary lights on both circuits will flash at 4 Hz when the horn sounds. Simply connect the green input wire to your vehicle's horn circuit to enable this feature.

Electronically Fused Circuits

Both light circuits are electronically fused and can be set directly from the switch itself! The halo will illuminate red to notify you when a fused circuit has tripped.

Voltage display indicator

When starting the vehicle, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage less than 11.8V.

low voltage cut

If the battery voltage drops below 10.8V, the lights will not turn on, preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate low voltage condition.
