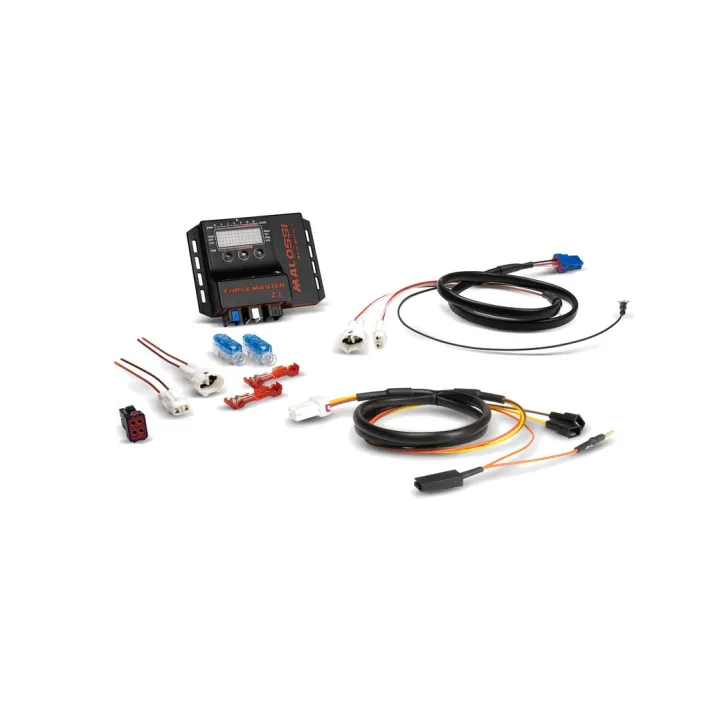

MALOSSI electronic control unit FORCE MASTER 2.1 1138482

Automatically generated translation
Original source text
With a refreshed look, the Force Master 2.1 control unit is much easier to configure. Making products easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, responsive, and high-performance product. With an interface for K and CAN communication lines, a new user interface, and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details - Carburettor adjustment - ± 14% LOW/HIGH/MEDIUM - RPM limiter: +1,000 RPM - Temperature range = -30°C +80°C - Minimum operating voltage = +7V - Maximum operating voltage = +16V - Average absorbed current < -200mA - Environmental protection = IP65 - 3 different power curves: - curve 0: Malossi exhaust system with DB killer, original cylinder, original cylinder head, original camshaft, original filter - curve 1: original exhaust system, Malossi cylinder, original cylinder head, original camshaft, original filter - curve 3: Malossi exhaust system with DB killer, Malossi cylinder, original cylinder head, original camshaft, original filter Complete carburettor control is obtained by combining the O2 controller with the Force Master ECU. The synergy between these two devices is limitless; the entire quoted plan is managed, controlled, and optimized for any processing step proposed by Malossi. Products are reserved exclusively for competitions at venues designated according to the regulations of the competent sports authorities. We disclaim all liability for improper use.
