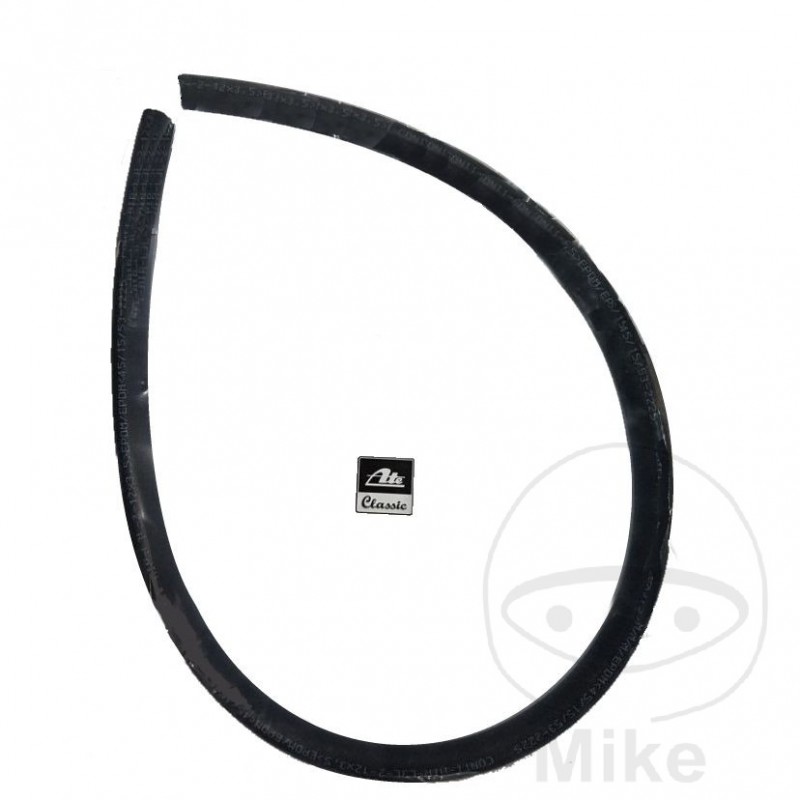

ATE Vacuum Hose, braking system / brake booster
Vacuum hose for brake system
It is installed between the intake manifold and the brake booster
Especially with veterans and young
weather resistant hose
Smooth surface and resistant to dry air (not oily), brake fluids and aqueous media
Very low water permeability and very good vacuum resistance
Technical specifications:
Length: 1,000mm
Inner Ø: 12mm
outer Ø: 19 mm
Wall thickness: 3.5mm
Curvature radius: 70 mm
Operating pressure: 5 bar
Test pressure: 10 bar
Burst pressure: 60 bar
