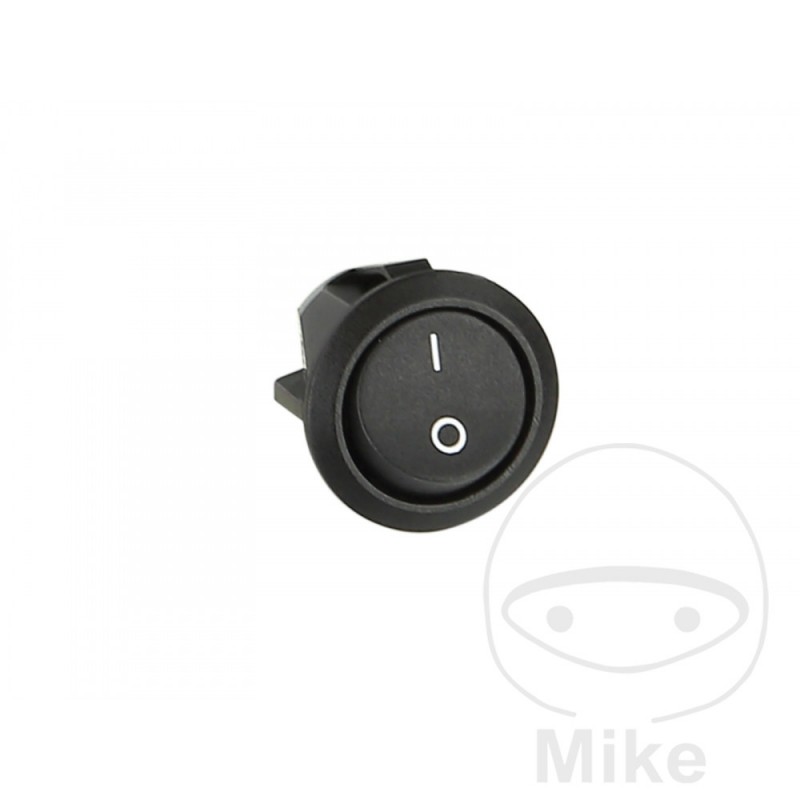

Round on/off switch 1940970
€9.03
Tax included
ON/OFF switch black
Type: OFF-ON SPST 1P
Rocker: Black Print I/O
Connection: 4.8 mm flat plug
Hole: Ø 20mm
Technical data:
Switching capacity: 10A/250Vac, 15A/125Vac
Electrical life: 10000 cycles with maximum load
Mechanical life: 30000 cycles
Contact resistance: 20 Mohm
Insulation resistance: min. 1000 Mohm
Dielectric strength: 1500Vac / 1 minute
MATERIAL:
Shell: PA66 nylon
rocker: nylon PA66 + polycarbonate
moving contacts: copper, silver-plated
static contacts: copper, silver-plated
Terminals: Copper, silver-plated
Contact: with return spring
Type: OFF-ON SPST 1P
Rocker: Black Print I/O
Connection: 4.8 mm flat plug
Hole: Ø 20mm
Technical data:
Switching capacity: 10A/250Vac, 15A/125Vac
Electrical life: 10000 cycles with maximum load
Mechanical life: 30000 cycles
Contact resistance: 20 Mohm
Insulation resistance: min. 1000 Mohm
Dielectric strength: 1500Vac / 1 minute
MATERIAL:
Shell: PA66 nylon
rocker: nylon PA66 + polycarbonate
moving contacts: copper, silver-plated
static contacts: copper, silver-plated
Terminals: Copper, silver-plated
Contact: with return spring
1940970
10 Items
Specific References
- ean13
- 4026724336498
