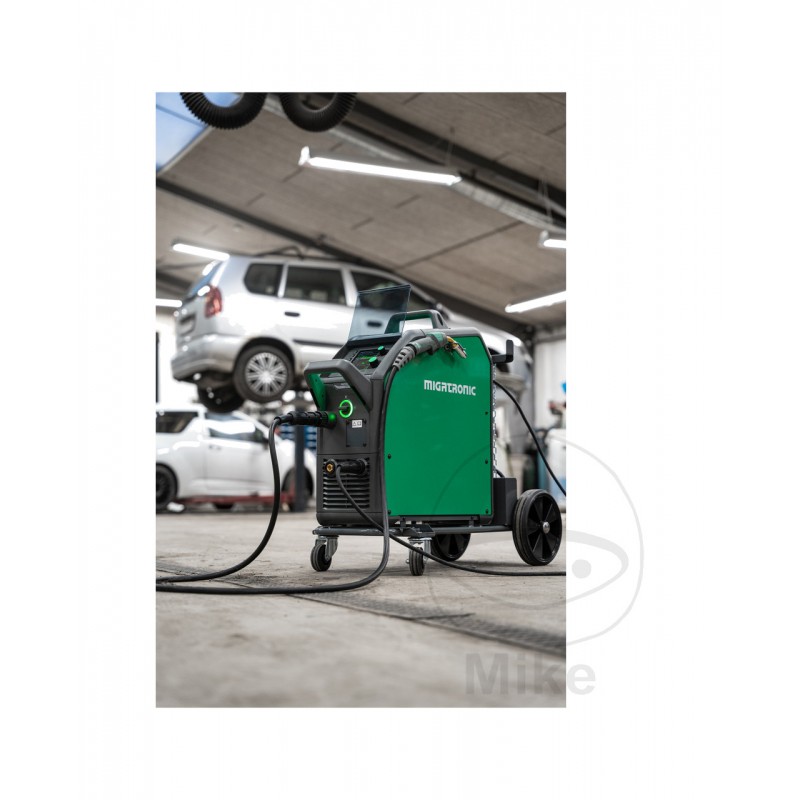

The Automig 230 is a synergic inverter welder
designed for car repair. Complies with the rules
Automotive manufacturers' standards for brazing and soldering processes on high-strength steels
stainless steel and aluminum. Mechanics and sheet metal workers
in body shops of all kinds can work with a The Automig assumes
this responsibility with determination.
Use the 230 amps for simple auto repair welding jobs
in small or independent workshops. The machine is easy to set up
and it is ready to weld whenever the user needs it.
The graphical control panel is intuitive to navigate and easy to use for both auto mechanics
as for professional platers.
Current range (MIG), A: 15-230
Mains voltage +/-15% (50-60Hz), V: 3 x 400
Fuse, A: 10/16
Effective mains current, A: 7.2
mains current max. A: 10.5
Power 100%, kVA: 4.9
Max power, kVA: 7.2
No-load voltage, V: 50-60
Idle power, W: 30
Yield: 88
Power factor: 0.94
Duty Cycle 100% /20°C (MIG), A/%/V: 175/23.0
Duty cycle max. /20°C (MIG), A/%/V: 230/40/25.5
Duty Cycle 100% /40°C (MIG), A/%/V: 175/23.0
Duty cycle 60% /40°C (MIG), A/%/V: 205/24.3
Duty cycle max. /40°C (MIG), A/%/V : 230/40/25.5
Protection class IP23S: IP23 S
Dimensions (without trolley) (H x W x L), mm 675 x 250 x 738: 675x250x738
Weight, kg (without trolley) 32.5: 32.5
