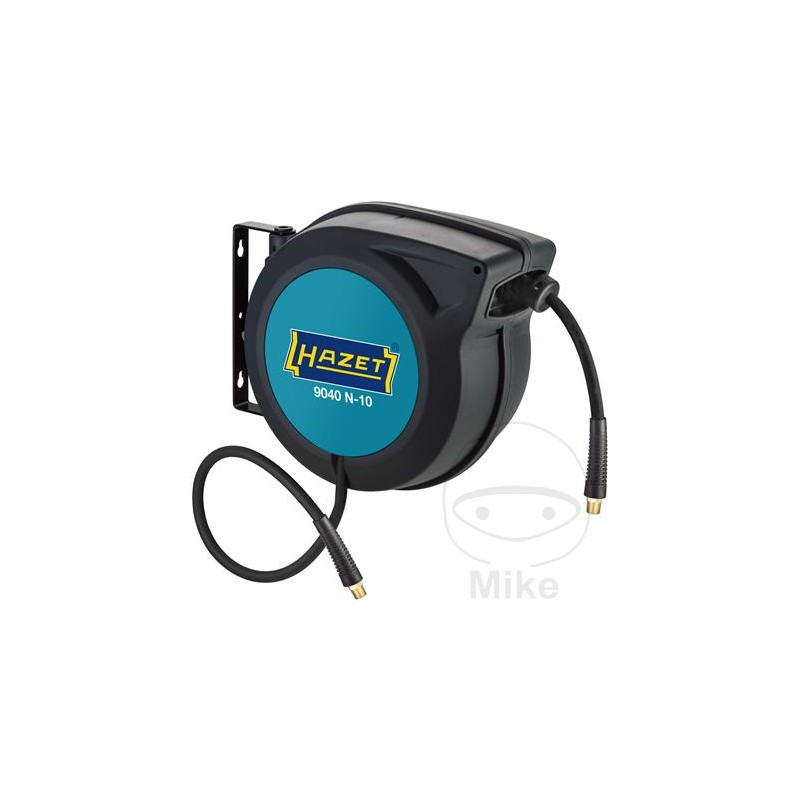

HAZET Compressed air cable reel extension 15 M DN10 6560612

Hazet hose reel 15m

The automatic hose reel creates order in the workshop: there are no hoses lying around, reducing the risk of accidents

Stop the hose at any point due to the stop at any point function

Clean rewind thanks to automatic guidance

Rewind with brake to avoid accidents

Suitable for compressed air or water

Complies with all relevant provisions of the Machinery Directive 2006/42/EC

Integrated drilling template for mounting on cartons

Technical data:

Inner diameter of the hose 10 mm

Dimensions 459 x 378 x 205mm

Packed dimensions 465 x 400 x 220 mm

Hybrid Polymer Hose, Black

Connection hose length 0.9 m

Hose length 15 m

Max. operating pressure 20 bar

Net weight 6.45kg

Temperature range: -40 to 60 degrees Celsius

Air connection inlet male thread 16.41 mm (3/8 inch)

External thread of air connection outlet 16.41 mm (3/8 inch)

Scope of supply:

1x Hazet 9040N-10 hose reel
