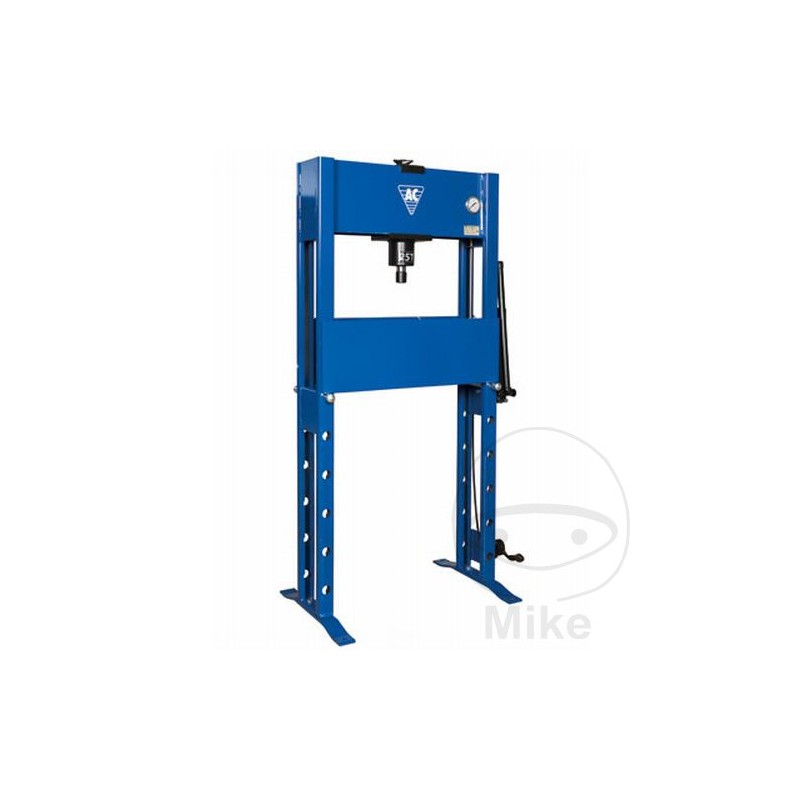

AC HYDRAULIC workshop press 25 TO 617.27.61

CA Press PJ25H (25 t) hydraulic workshop, incl. Established Press Dorn

Hydraulic secondary hand press for automotive workshops and industry

Special offer: Including PJS Press chuck set consisting of 3 pressure plate with spines (Ø 12, 20 and 30 mm and adapters)

Fußpneumatisch controlled rapid stroke rate of the plunger for fast and precise clamping of the workpiece

Sideways adjustable cylinder

integrated pressure gauge at a comfortable eye level

Built-in overload safety valve

Frame and press fully welded high-strength steel table for durability

removable pressure shoe for mounting various chucks

Standard 2 classroom blocks

Specs:

Capacity: 25 t

Piston stroke: 150mm

Application: 105 - 780mm

Leg length: 535mm

Height: 1620mm

Overall width: 885mm

Rahmeninnenmaß width: 640 mm

Rahmeninnenmass: 130 mm

Weight: 135kg
