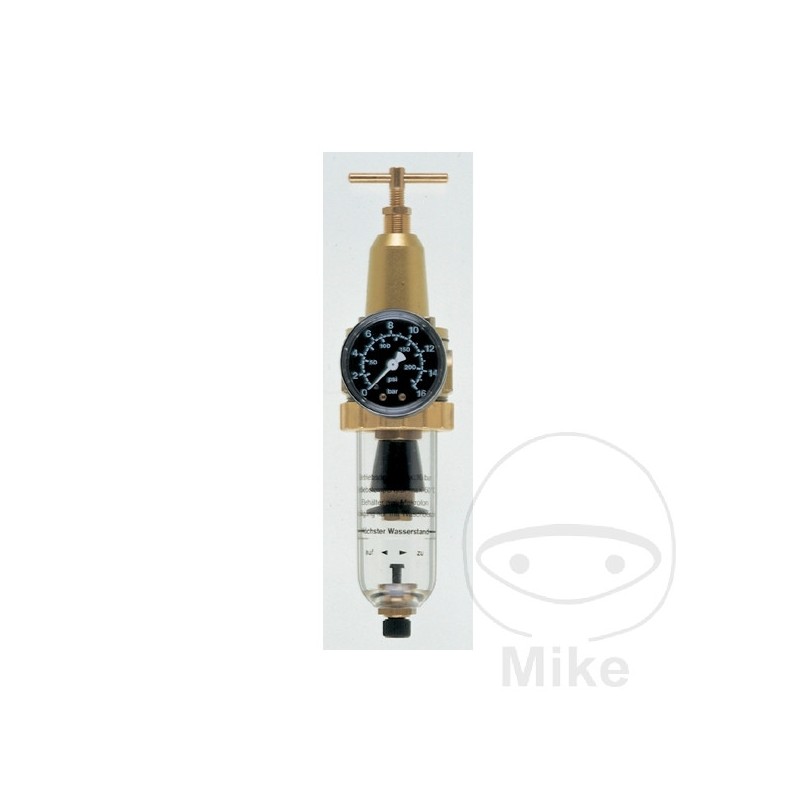

Filter and pressure regulator to reduce compressed air 3/8 656.73.09
€183.21
Tax included
Filter and pressure regulator DN 6
Manually operated condensate drain. Sintered bronze filter element with 50 mm. Container optionally made of plastic (polycarbonate) or metal. Pressure reducing parts on relief (feedback control) membrane. front and rear of the manometer. Operation by clamp.
With plastic / metal container and manual drain, Zinc die-cast support.
Connection: G3/8
Control range: 0.5 to 10 bar
Working pressure max. plastic container: 16 bar
metal container: 25 bar
Operating plastic container: 0 ° C to 50 ° C
Metal containers: 0 ° C to 90 ° C
Flow rate at 6 bar operating pressure: 55 m3/h
Dimension (Ø x H): 56 x 230 mm
Nominal diameter: DN6
The dependence of the supply pressure: <3%
effective cup volume: 25 cc
Parts: Plastic container with seal and manual drain
Manually operated condensate drain. Sintered bronze filter element with 50 mm. Container optionally made of plastic (polycarbonate) or metal. Pressure reducing parts on relief (feedback control) membrane. front and rear of the manometer. Operation by clamp.
With plastic / metal container and manual drain, Zinc die-cast support.
Connection: G3/8
Control range: 0.5 to 10 bar
Working pressure max. plastic container: 16 bar
metal container: 25 bar
Operating plastic container: 0 ° C to 50 ° C
Metal containers: 0 ° C to 90 ° C
Flow rate at 6 bar operating pressure: 55 m3/h
Dimension (Ø x H): 56 x 230 mm
Nominal diameter: DN6
The dependence of the supply pressure: <3%
effective cup volume: 25 cc
Parts: Plastic container with seal and manual drain
656.73.09
