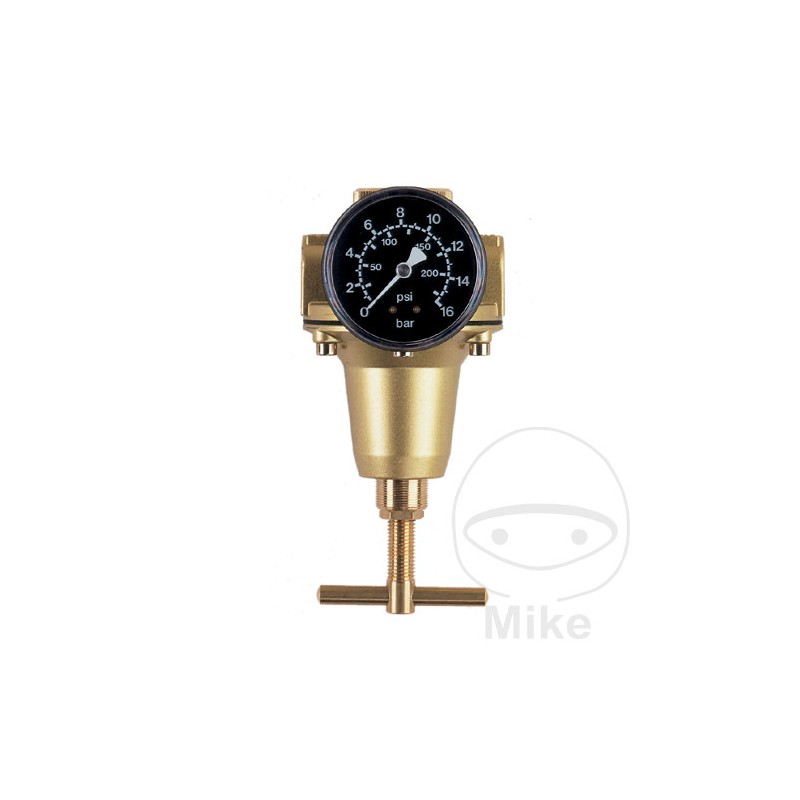

Right compressed air pressure reducer 1/2 656.03.46
€156.62
Tax included
Pressure reducer (diaphragm design) DN 15
in a straight way. Secondary ventilation (reverse control). Lever operation. Pressure gauge mountable on both sides.
Note: To prevent failure, a filter must be connected upstream.
Connection: G1 / 2
Control range: 0.5 to 10 bar
Max operating pressure: 25 bar
Operating temperature: - 10 ° C to 90 ° C
Flow rate at 6 bar operating pressure: 160 m3/h
Dimensions (Ø x H): 82 x 170 mm
Nominal size: DN10
Prepressure dependency: <2%
in a straight way. Secondary ventilation (reverse control). Lever operation. Pressure gauge mountable on both sides.
Note: To prevent failure, a filter must be connected upstream.
Connection: G1 / 2
Control range: 0.5 to 10 bar
Max operating pressure: 25 bar
Operating temperature: - 10 ° C to 90 ° C
Flow rate at 6 bar operating pressure: 160 m3/h
Dimensions (Ø x H): 82 x 170 mm
Nominal size: DN10
Prepressure dependency: <2%
656.03.46
