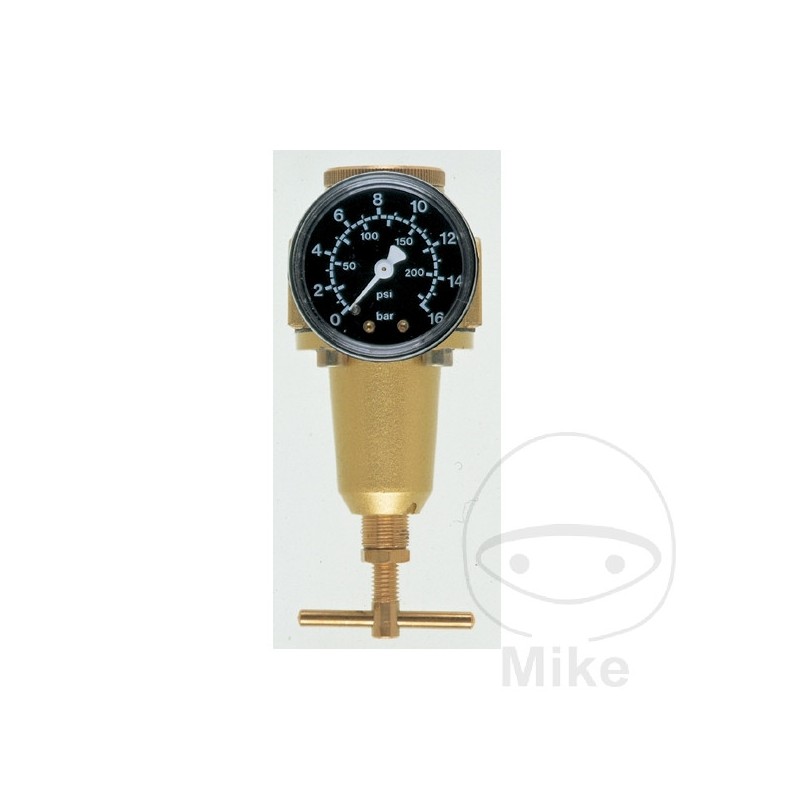

Right compressed air pressure reducer 3/8 656.03.38
€149.37
Tax included
Pressure reducer (diaphragm type) DN 10
Straight through. secondary (exhaust) ventilation. Operation by clamp. Pressure gauges mounted on both sides.
Note: In order to avoid losses, a filter must be installed.
Connection: G3/8
Control range: 0.5 to 10 bar
max pressure:. 25 bar
Operating temperature: - 10 ° C to 90 ° C
Flow rate at 6 bar operating pressure: 120 m3/h
Dimension (Ø x H): 70 x 160 mm
Nominal diameter: DN10
The dependence of the supply pressure: <2%
Spare parts:
Ø Manometer 63, level, range 0 to 10 bar, G 1/4
Ø Manometer 63, level, range from 0 to 16 bar, G 1/4
Straight through. secondary (exhaust) ventilation. Operation by clamp. Pressure gauges mounted on both sides.
Note: In order to avoid losses, a filter must be installed.
Connection: G3/8
Control range: 0.5 to 10 bar
max pressure:. 25 bar
Operating temperature: - 10 ° C to 90 ° C
Flow rate at 6 bar operating pressure: 120 m3/h
Dimension (Ø x H): 70 x 160 mm
Nominal diameter: DN10
The dependence of the supply pressure: <2%
Spare parts:
Ø Manometer 63, level, range 0 to 10 bar, G 1/4
Ø Manometer 63, level, range from 0 to 16 bar, G 1/4
