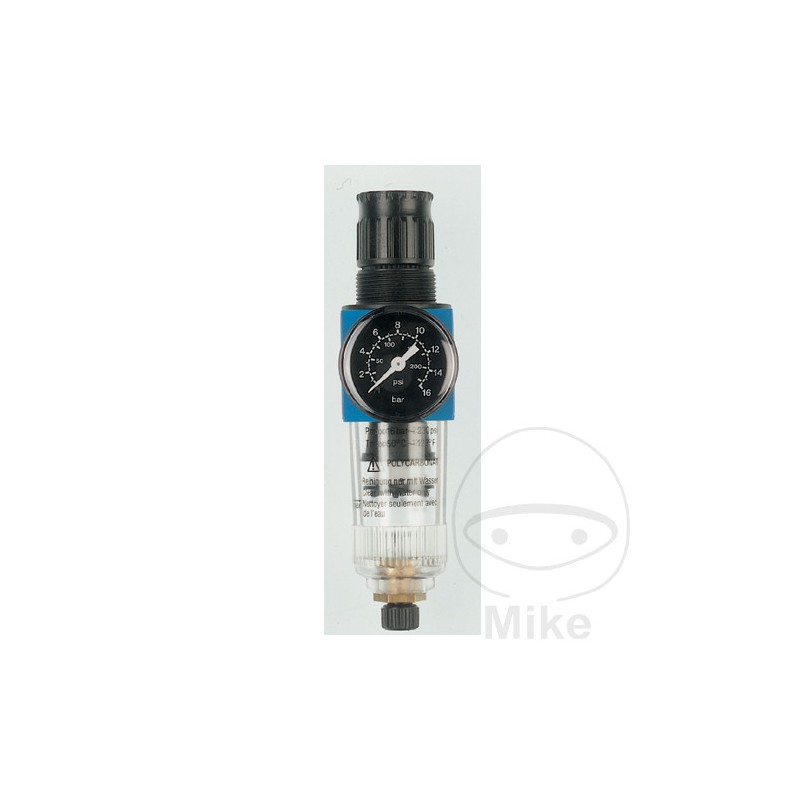

Compressed air filter and reduction valve G1/4 16 0.5-10 B 656.17.73
€121.07
Tax included
Strainer and reducing valve in pressure block design
Double-sided that expand for other devices. Drain manually operated. Polyethylene filter insert, 50 mm. reducer part
(diaphragm) with secondary (exhaust) ventilation. Adjusted by turning the handwheel. front and rear of the manometer. Die-cast zinc housing, containers made of plastic (polycarbonate). Drain valves as in filters.
Connection: G 1/4
max pressure:. 16 bar
Temperature: 0°C to 50°C
Flow rate at operating pressure 6 bar: 36 m³ / h
Dimension (Ø x H): 40 x 190 mm
Size: ID 6
The dependence of the supply pressure: <4%
effective cup volume: 10 cc
Double-sided that expand for other devices. Drain manually operated. Polyethylene filter insert, 50 mm. reducer part
(diaphragm) with secondary (exhaust) ventilation. Adjusted by turning the handwheel. front and rear of the manometer. Die-cast zinc housing, containers made of plastic (polycarbonate). Drain valves as in filters.
Connection: G 1/4
max pressure:. 16 bar
Temperature: 0°C to 50°C
Flow rate at operating pressure 6 bar: 36 m³ / h
Dimension (Ø x H): 40 x 190 mm
Size: ID 6
The dependence of the supply pressure: <4%
effective cup volume: 10 cc
656.17.73
10 Items
