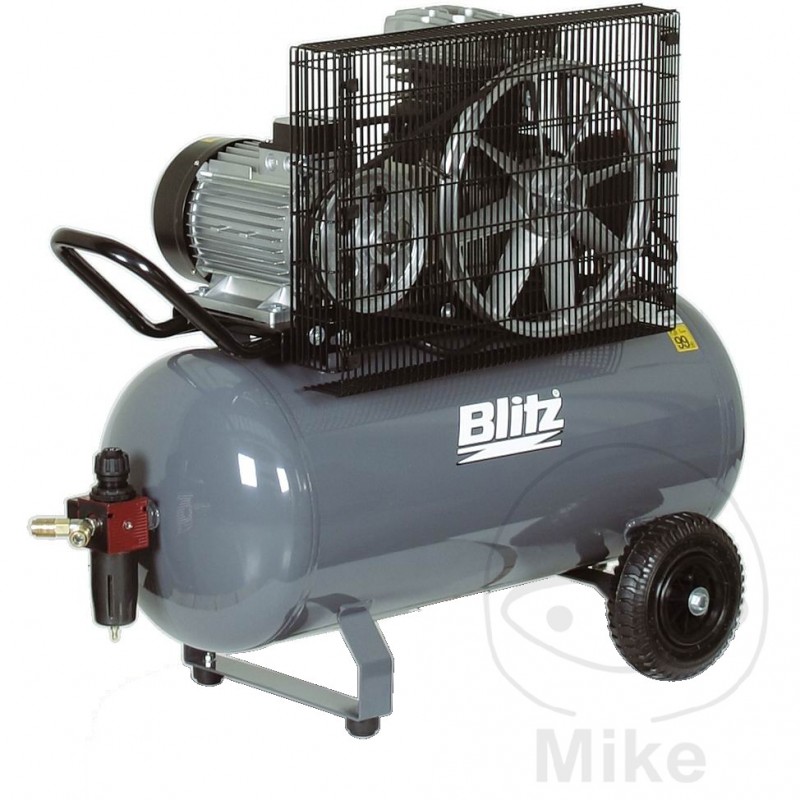

BLITZ mobile piston compressor AIRMOBIL 700L/90L/10 BAR 673.01.01

Compressor BLITZ Airmobil 721 / 90-10

Mobile

Pressure vessel painted and lying down

Including starting relief and pressure control

Pressure reducer shown is optional

Technical specifications:

Pressure vessel capacity: 90 liters

Maximum pressure: 10 bar

Suction capacity: 700 l / min

Effective supply flow: 565 l / min

Cylinders / stages: 2/1

Motor power: 4 kW

Electrical connection: 400V / 50Hz

Compressor speed: 990rpm

Noise level: 79 dB(A)

Scope of supply:

Compressor with motor and mounted pressure vessel

Flow control

suction filter

Pressure gauge and hose coupling

Security valve

check valve

condensate drain valve

Reducing valve with after cleaner

chassis
