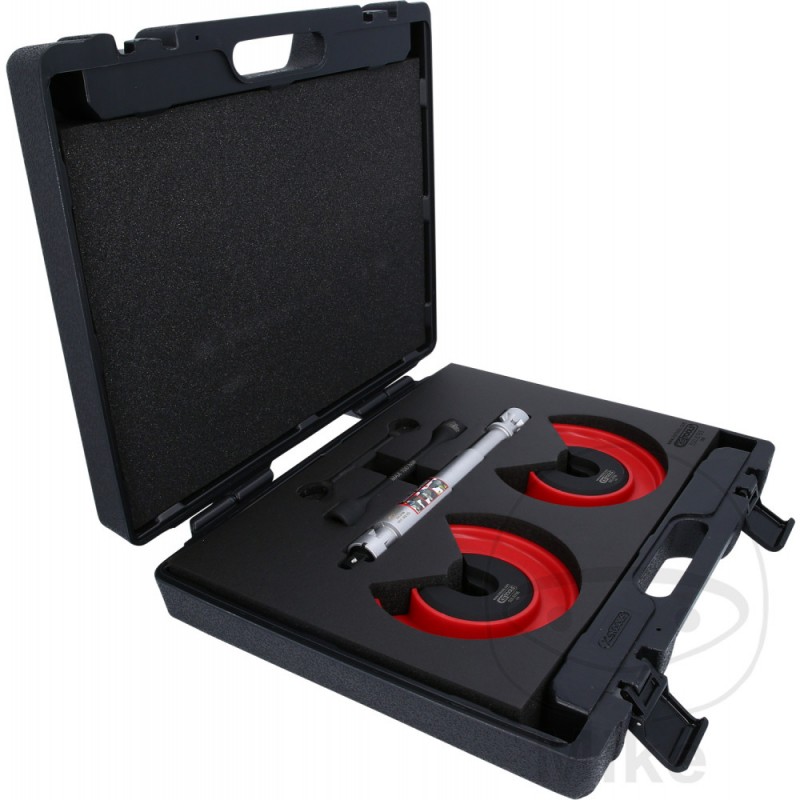

Inner Spring Compressor 617.87.65

Internal spring compressor 110-220

for mounting and dismounting coil springs on wishbone and trailing arm axes

safe assembly and disassembly without the need to disassemble the shaft

great time saver

new revised design with extended clamping path

suitable spring plates for the secure holding of the coil spring

tensions the spring securely in the center of the spring

good positioning thanks to its compact design

overload protection thanks to torsion drive element

can be used on vehicles with very small access holes

spring support with special geometry and protective jaws

in sturdy plastic box

Fields of application: Audi A4 B7 (8E), A4 B8 (8K), A5 (8T), A6 (C7 / 4G), A7 (C7 / 4G), Q5 (8R) and Seat Exeo (3R)

Characteristic

Packaging: plastic case, extra robust

.

General field of application: For mounting coil springs on wishbone and trailing arm axes

Maximum torque in Nm: 100

wingspan max in mm: 220.0

Max spring pressure: 1600 kg

Load capacity in kg: 1600

Weight [g]: 4900

Spring capacity: 110.0 - 220.0 mm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
AUDI SEAT
