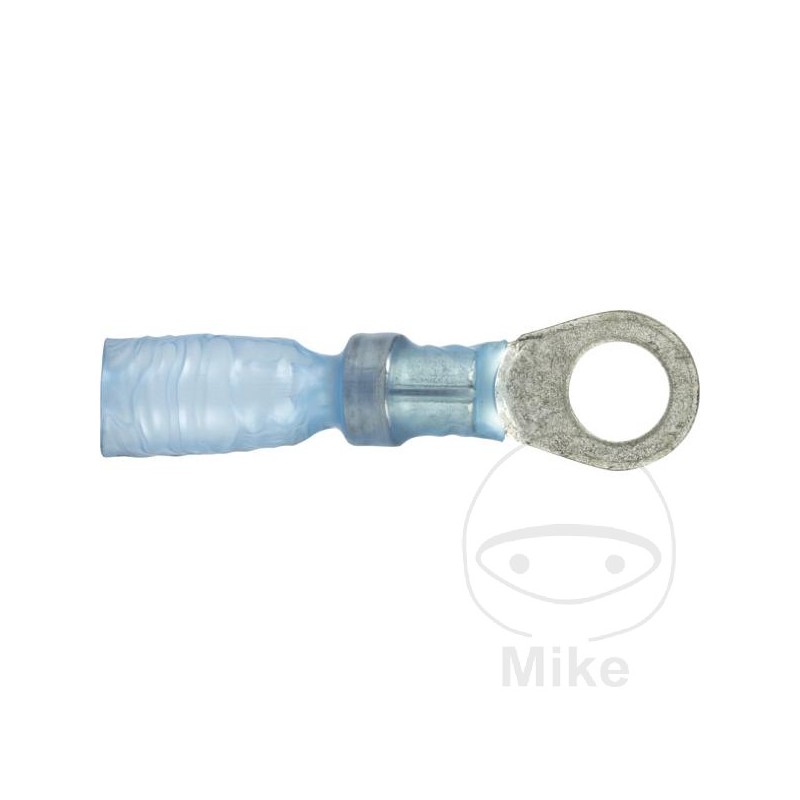

Solder Wire Terminal Connector 2.5-6.0 M8 SERIE SGRT 158.28.32

Weld Cable Terminal End Splice

Insulated Only, SGRT Series

Packaging unit = minimum order quantity

Line - minimum area: 2.5 mm²

Management - max. area 6.0mm²

Eyelet hole Ø: 8.4 mm

Ø pack max.: 6.5

Length: 52.0mm

Application example:

Strip 15mm of insulation from all lines to be connected together.

Then, line up the wires and form a wire bundle.

Insert the wiring harness into the end user of the welding grip and twist slightly.

The copper insert grips bare wires and holds them together.

Then heat the end connector with a heat gun. Heat the copper insert area until the solder ring melts and solder flows into the core of the wire harness.

When using a GRS series sealed end fitting, the sealing ring made of hot melt adhesive must be heated until the adhesive melts and flows between the lines.

(NO CRIMP)
SHAPE: TONGUE RING
FITS FOR: M8
FOR THE MINIMUM CROSS SECTION: 2.5 MM²
FOR THE MAXIMUM CROSS SECTION: 6.0 MM²
SOLDER CONNECTOR: YES
INSULATED: YES
HEAT SHRINK TUBES: YES
QUANTITY OF TERMINALS: 1 POL.
