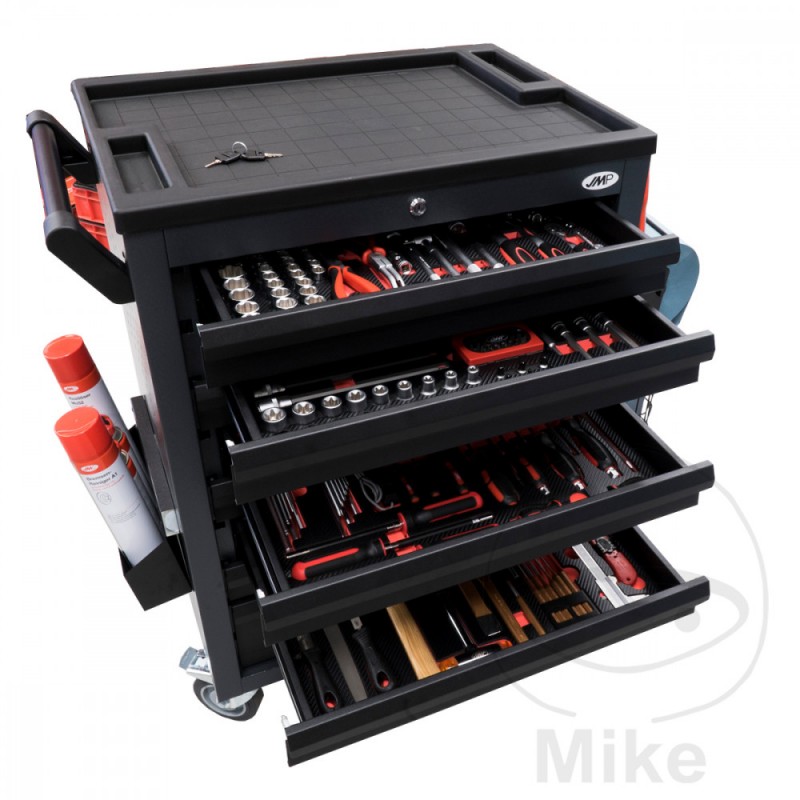

JMP cart with tools EMBOY 32.0 PLUS RAL7016 606.00.95

JMP Emboy 32.0 Plus tool trolley

Anthracite color RAL 7016

Overall dimensions (HxWxD) 1,037 x 781 x 498 mm

Includes a 305-piece tool assortment

Includes wastebasket, paper roll holder, 4 rolls of cleaning paper with adapter, LED hand lamp

With 8 drawers: 7x drawer front height 80 mm and 1 drawer front height 165 mm, internal dimensions 527 x 348 mm each

The drawers are 100% extendable, with ball bearings and telescopic guides

Load capacity per drawer 20 kg

Total load capacity: 480 kg

Two-stage locking concept: central locking, lockable by cylinder lock with 2 toggle keys; individual lock prevents unintentional opening of the drawers

Large elastic wheels (125 mm) with ball bearings, easy to move even under high dynamic loads, 2 wheels with brakes (parking brake)

Perforated side panels, for fixing accessories

All parts are also available separately

Content drawer 1:

10x hexagon inserts 6.3 mm (1/4") 4 - 13 mm

12x hexagon inserts 10 mm (3/8") 8 - 19 mm

11x 10mm (3/8") hexagon inserts extra deep 8 - 19mm

17x hexagon inserts 12.5 mm (1/2") 10 - 32 mm

14x T-profile screwdriver bits 6.3 mm (1/4") T10 - T40

5 x 6.3mm (1/4") Hex Driver Bits 3 - 7mm

1x Cross profile screwdriver bit 6.3 mm (1/4") PH2

1x slotted profile screwdriver bit 6.3 mm (1/4") 5.5 mm

3 reversible ratchet 6.3 mm + 10 mm + 12.5 mm (1/4", 3/8", 1/2")

3x universal joints 6.3 mm + 10 mm + 12.5 mm (1/4", 3/8", 1/2")

2 extensions 6.3 mm (1/4") 50 + 100 mm

2 extensions 10 mm (3/8") 50 + 150 mm

2x extensions 12.5 mm (1/2") 125 + 250 mm

1x sliding handle 12.5 mm (1/2") 250 mm

2x knurled adapter 1/4" x 3/8" + 3/8" x 1/2"

1x spark plug pliers

1x spark plug connector pliers

1x 12.5 mm (1/2") magnetic spark plug insert, 21 mm

6x spark plug gasket inserts 10 mm (3/8") 8 - 16 mm

Drawer 2 content:

32-Piece Drill Assortment

12.5 mm (1/2") screwdriver bits in the following profiles and lengths:

2x key profile, 240 mm long M7, M8

1 key profile, 100 mm long, M9

1 keyway profile, 140 mm long, M10

1 keyway profile, 120 mm long, M10.3

7x hexagonal socket, length 53 mm, 5 - 14 mm

6x hexagon keys, 100 mm long, 5 - 12 mm

5x multi-prong, 53 mm long, M6 - M14

5x multi-tooth, 100 mm long, M6 - M14

7x T-profile without hole, 53 mm long, T25 - T55

7x T-profile without hole, 100 mm long, T25 - T55

1 T-profile without hole, 140 mm long, T70

9x spiral slot inserts for loosening damaged nuts and bolts from 10 to 19 mm

9x profile sockets E 1/2" E10 - E24

9x 1/4" five-star sockets IP10 - IP50

Content Drawer 3:

17x ring key 6 - 24 mm

4 ring wrenches from 10 to 19 mm

8x double ring spanner with crank 6 - 22 mm

6x profile double ring key E6 - E24

Content Drawer 4:

3x Flexible keys 6, 7, 8 mm

9x angled hex key 1.5 - 10 mm (extra short, long blade with ball end)

9x T-profile angle wrench without hole T10 - T50 (extra short and long handle with ball nose)

1x Screwdriver slot 6.0 x 25, short

1x Phillips screwdriver PH 2, short

8x T-profile with hole T8 - T40

3x slotted 4.5 - 6.5 - 8.0 mm

3x cross PH1, 2, 3

1x polarity tester with puncture function

Content of drawer 5:

1x 180mm combination pliers

1 side cutter 160 mm

2x 200mm straight + curved phone pliers

1x 240mm water pump pliers

4 circlip pliers 175 mm straight + curved for external and internal circlips

1x circlip pliers 220 mm for wheel bearing circlips

1x mini gripping pliers 100 mm with half round jaws

1x 250mm gripping pliers with forged jaws

1x Rabitz pliers 250mm

Content drawer 6:

1x 500 g hammer with American walnut handle

1x 35 mm dent hammer

1x professional mini bow saw

1x 5m tape measure

1x Precision caliper with 150 mm measuring range

6x punch 2 - 8 mm

1x safety knife

3x flat, half round, triangular workshop files

1x 200mm flat chisel

1x cross chisel 175 mm

1x center punch 120 x 10 mm

1x HSS step drill bit 4 - 20 mm

1x TIN 8mm spot welding drill

Contents of drawer 7:

This drawer remains empty



Contents of drawer 8:

This drawer remains empty
