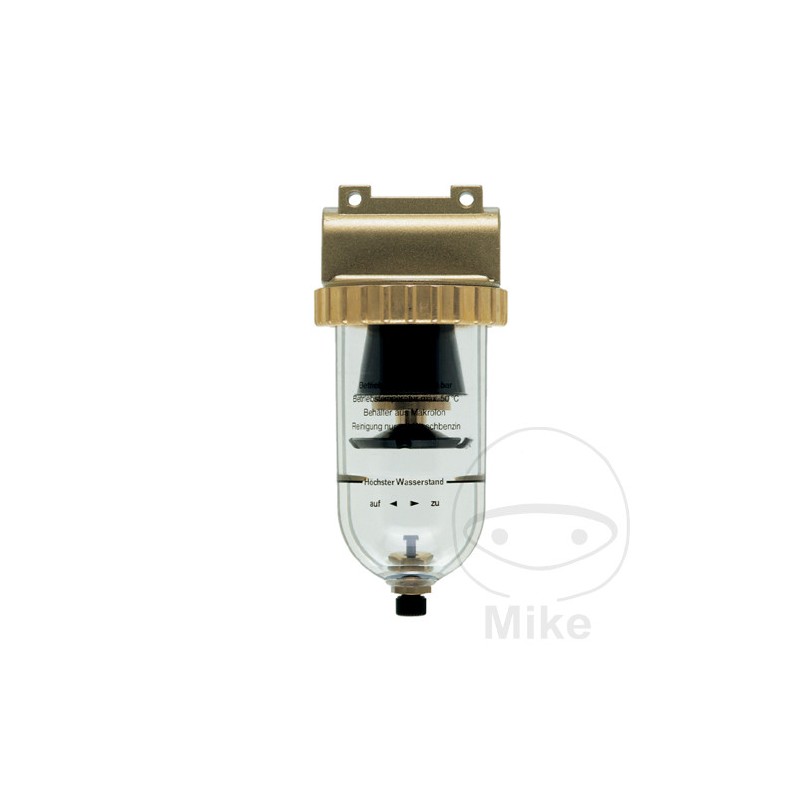

compressed air filter R 1/2 656.72.18

Compressed air filters DN 15

For the removal of impurities (particles of water condensate, lime and rust) from the working air. Purification is carried out in two stages by cyclone separation (condensation) and sinter filter (solid impurities).

With plastic (polycarbonate) containers and manual drainage, Die-cast zinc support.

Connection: G 1/2

effective cup volume: 80 cc

filter rating: 50mm

max pressure:. 16 bar

Temperature: 0°C to 50°C

Flow rate at operating pressure 6 bar: 280 m³ / h

Dimensions (Ø x H): 87 x 196 mm

Size: ID 15

Rated pressure (casing): PN 25

Parts: Plastic container with seal and manual drain
