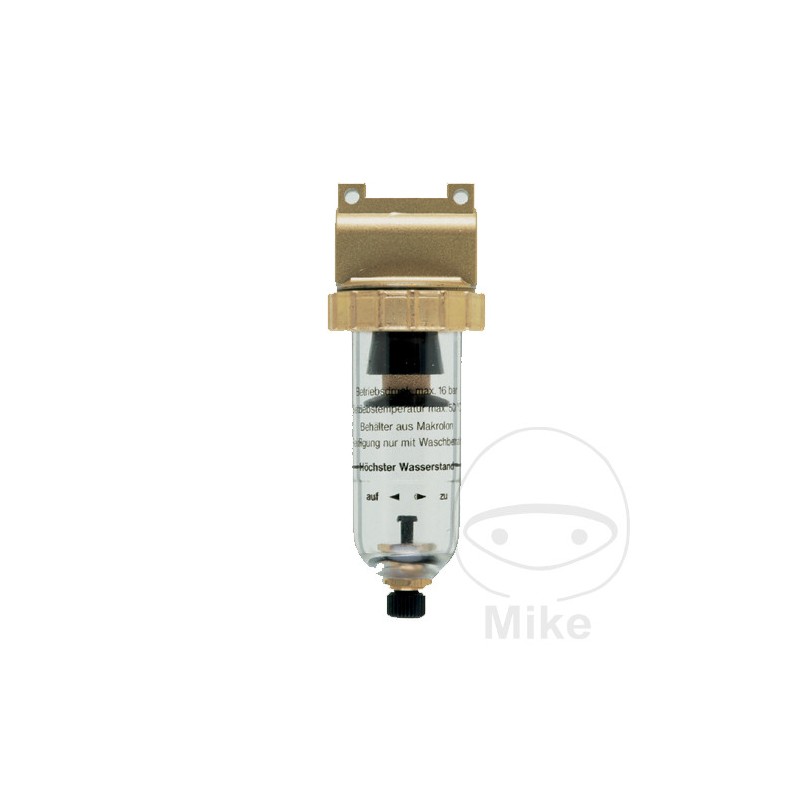

compressed air filter R 3/8 656.72.00
€82.58
Tax included
Compressed air filters DN 6
For the removal of impurities (particles of water condensate, lime and rust) from the working air. Purification is carried out in two stages by cyclone separation (condensation) and sinter filter (solid impurities).
With plastic (polycarbonate) containers and manual drainage, Die-cast zinc support.
Connection: G3/8
effective cup volume: 25 cc
filter rating: 50mm
max pressure:. 16 bar
Temperature: 0°C to 50°C
Flow rate at operating pressure 6 bar: 63 m³ / h
Dimension (Ø x H): 56 x 154 mm
Size: ID 6
Rated pressure (casing): PN 25
Parts: Plastic container with seal and manual drain
For the removal of impurities (particles of water condensate, lime and rust) from the working air. Purification is carried out in two stages by cyclone separation (condensation) and sinter filter (solid impurities).
With plastic (polycarbonate) containers and manual drainage, Die-cast zinc support.
Connection: G3/8
effective cup volume: 25 cc
filter rating: 50mm
max pressure:. 16 bar
Temperature: 0°C to 50°C
Flow rate at operating pressure 6 bar: 63 m³ / h
Dimension (Ø x H): 56 x 154 mm
Size: ID 6
Rated pressure (casing): PN 25
Parts: Plastic container with seal and manual drain
656.72.00
