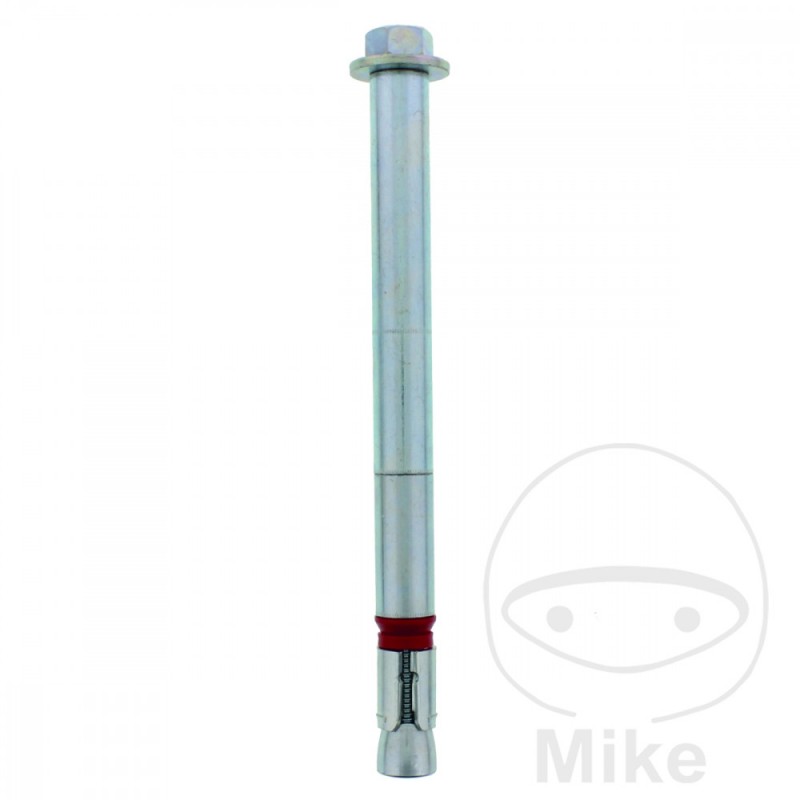

BLITZ Plug B 24/156 486.91.12
€24.94
Tax included
SZ-B plug
Screw head design, galvanized steel, approved for medium to heavy anchoring in cracked and uncracked concrete.
The ETA high-strength anchor, option 1, is a high-performance pressure anchor system with a special triple-expansion sleeve, which allows very high allowable loads with reduced axial and edge distances.
The plastic compression ring ensures that the fastener is permanently held against the substrate and prevents the anchor from rotating during installation.
Advantages
- Very high tensile and shear loads
Application Examples
Medium and heavy anchors in cracked and uncracked concrete,
For example, steel supports, railings, machines, scaffolding, supports.
Drill diameter mm: 16
Total length of the spike mm: 290
Thread size: M 16
Drilling depth mm: 275
Required anchorage depth in concrete mm: 215
Max. Component clamping thickness mm:
Plug tightening torque Nm: 160
Packing unit: 1
Screw head design, galvanized steel, approved for medium to heavy anchoring in cracked and uncracked concrete.
The ETA high-strength anchor, option 1, is a high-performance pressure anchor system with a special triple-expansion sleeve, which allows very high allowable loads with reduced axial and edge distances.
The plastic compression ring ensures that the fastener is permanently held against the substrate and prevents the anchor from rotating during installation.
Advantages
- Very high tensile and shear loads
Application Examples
Medium and heavy anchors in cracked and uncracked concrete,
For example, steel supports, railings, machines, scaffolding, supports.
Drill diameter mm: 16
Total length of the spike mm: 290
Thread size: M 16
Drilling depth mm: 275
Required anchorage depth in concrete mm: 215
Max. Component clamping thickness mm:
Plug tightening torque Nm: 160
Packing unit: 1
486.91.12
