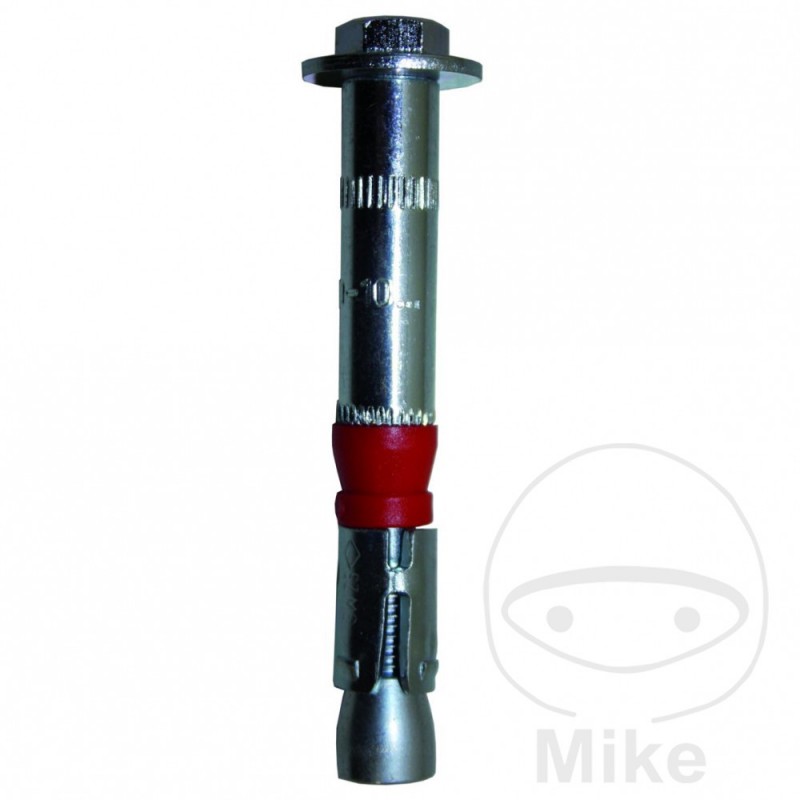

BLITZ Plug SZ-S 10/10 486.90.04
€4.69
Tax included
10/10 SZ-S plug
The ETA approved SZ high strength anchor is a high performance pressure anchor system
with special triple expansion sleeve, which allows very high permissible loads with small
permissible loads with small center and edge distances.
The plastic compression ring ensures that the fixing piece is permanently braced against the substrate.
Advantages
- Very high lateral and tensile loads
Application Examples
Medium and heavy anchors in cracked and uncracked concrete,
For example, steel supports, railings, machines, scaffolding, supports.
Drill diameter mm: 10
Total length of the spike in mm: 75
Thread: M6
Drilling depth mm: 65
Required anchorage depth in concrete mm: 60
thickness max. component clamping mm: <10
Plug tightening torque Nm: 15
The ETA approved SZ high strength anchor is a high performance pressure anchor system
with special triple expansion sleeve, which allows very high permissible loads with small
permissible loads with small center and edge distances.
The plastic compression ring ensures that the fixing piece is permanently braced against the substrate.
Advantages
- Very high lateral and tensile loads
Application Examples
Medium and heavy anchors in cracked and uncracked concrete,
For example, steel supports, railings, machines, scaffolding, supports.
Drill diameter mm: 10
Total length of the spike in mm: 75
Thread: M6
Drilling depth mm: 65
Required anchorage depth in concrete mm: 60
thickness max. component clamping mm: <10
Plug tightening torque Nm: 15
486.90.04
