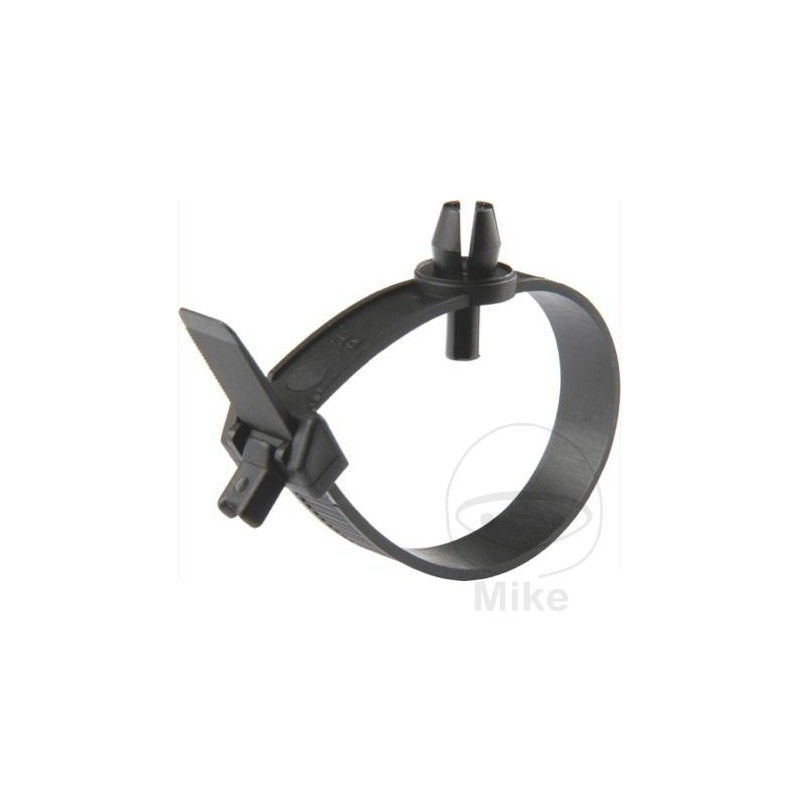

flange with rivet 9 X 160 MM 158.00.07
€2.43
Tax included
cable harnesses / cable ties with Spreizniet
Ideal for inserting into vehicle wiring and harnesses correctly and directly to the body
secure grip even on thin sheets of: only drill hole Ø 7 mm, then the split rivet is pressed into the hole and then pressed down into the pin. Therefore, the expansion rivet vanes separate and lock the tie
bodywork cable ties can be reopened
polyamide 12
WEATHER RESISTANT
UV resistant
external teeth
Dimensions (WxL): 9 x 160mm
Tensile strength: 265 N/mm²
Bündelmaß / receiving diameter: 41 mm
Pitch Circle Ø: 6.9 to 7.1 mm
Temperature range -40 ° to + 85 °
Approvals: UL 94 HB
COLOUR: BLACK
Content: 100 pieces
Length: 160 mm
WIDTH: 9.0MM
REUSABLE: YES
VERSION: WITH EXPANDING RIVET
Plastic material
ASSORTMENT: NO
WALL SUPPORT: NO
Ideal for inserting into vehicle wiring and harnesses correctly and directly to the body
secure grip even on thin sheets of: only drill hole Ø 7 mm, then the split rivet is pressed into the hole and then pressed down into the pin. Therefore, the expansion rivet vanes separate and lock the tie
bodywork cable ties can be reopened
polyamide 12
WEATHER RESISTANT
UV resistant
external teeth
Dimensions (WxL): 9 x 160mm
Tensile strength: 265 N/mm²
Bündelmaß / receiving diameter: 41 mm
Pitch Circle Ø: 6.9 to 7.1 mm
Temperature range -40 ° to + 85 °
Approvals: UL 94 HB
COLOUR: BLACK
Content: 100 pieces
Length: 160 mm
WIDTH: 9.0MM
REUSABLE: YES
VERSION: WITH EXPANDING RIVET
Plastic material
ASSORTMENT: NO
WALL SUPPORT: NO
158.00.07
10 Items
Data sheet
- WALL BRACKET
- NOT
- LENGTH
- 160 MM
- VERSION
- WITH EXPANDING RIVET
- REUSABLE
- YES
- WIDTH
- YES
- ASSORTED
- NOT
- COLOR
- BLACK
- MATERIAL
- PLASTIC
Specific References
- ean13
- 4026736018528
