JMP 4-pole plug connector housing kit TYCO AMP 158.06.95

JMP AMP Superseal Plug Housing Assembly

Establish a reliable, watertight and oil resistant connector.

Repair of worn and corroded plug connections in the wiring harness

Universally applicable for automobiles, commercial vehicles and motorcycles

When mounting accessories such. For example: auxiliary heating, PDC, rear view camera, additional lighting, ...

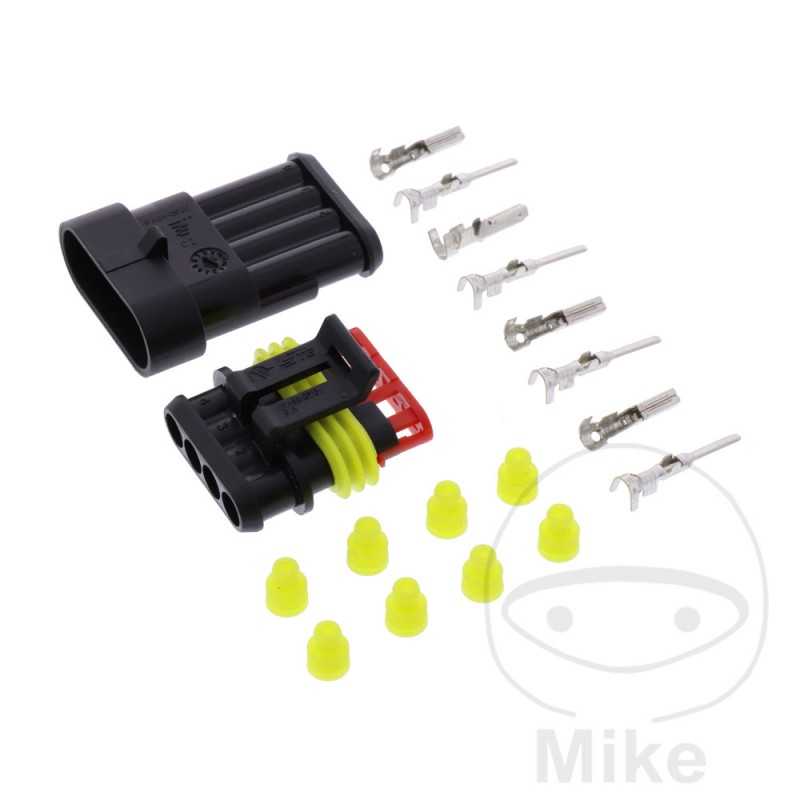

Scope of supply:

4 AMP plug contacts for cable cross section: 0.75 - 1.5 mm², plug width: 1.5 mm, plug height: 0.8 mm

4 AMP plug contacts for cable cross section: 0.75 - 1.5 mm², plug width: 1.5 mm, plug height: 0.8 mm

8 yellow single-wire seals (AMP protection plugs) Cross section: 1 - 1.5 mm², diameter: 5.9 - 6.1 mm, length: 7.8 mm, version: ELA

1 x 4-pin connector shell (AMP pin shell)

1 x 4-pin socket (AMP socket)
SHAPE: PLUG-IN HOUSINGS SET
FITS FOR: AMP SUPERSEAL SERIES
FOR THE MINIMUM CROSS SECTION: 0.75 MM²
FOR THE MAXIMUM CROSS SECTION: 1.5 MM²
SOLDER CONNECTOR: NO
INSULATED: YES
HEAT SHRINK TUBES: NO
NUMBER OF TERMINALS: 4 POL.
