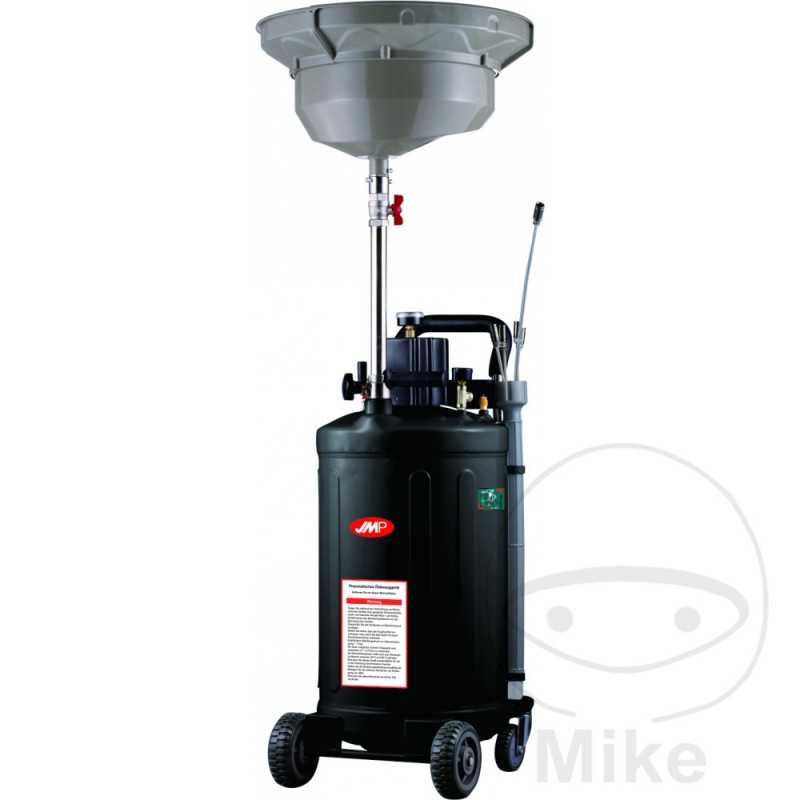

JMP Used oil extraction and collection machine 650.02.60

Mobile unit for the extraction and collection of used oils JMP

Optimal support for daily oil changes. Height-adjustable combination unit (used oil collection and extraction unit with pressure drain) for extracting and collecting used oil as well as used oil of hazard class AIII (according to the regulations for flammable liquids) from machines and vehicles .

It is also suitable for collecting under tail lifts. Aspiration is carried out using the (pneumatic) vacuum principle via a compressed air connection.

Includes set of suction probes with all common diameters. Metal and plastic.

Description:

- With 4 wheels, 2 of which are swivel with swivel support.

- Pressure relief by compressed air cushion (pneumatic)

- Level indicator

- Suction probes

- Security valve

- Pressure regulator

Technical data:

Functions: Extract used oil from the gearbox or vehicle engine.

Power source: compressed air

Suction capacity: approx. 3 L/min at 60°C oil temperature

Drip tray Ø: 530 mm

Air consumption: approx. 200 l/min

Air inlet pressure: 6 - 8 bar

Oil discharge pressure: 0.7 - 1 bar

Vacuum pressure: 0 - -1 bar

Tank capacity: Approximately 75 l

Collection tray volume: 20 l

Minimum working height: 1250 mm

Maximum working height Working height: 1890 mm

Operating temperature: 40 - 60°C (optimum for motor oil)

Weight: 30 kg.
