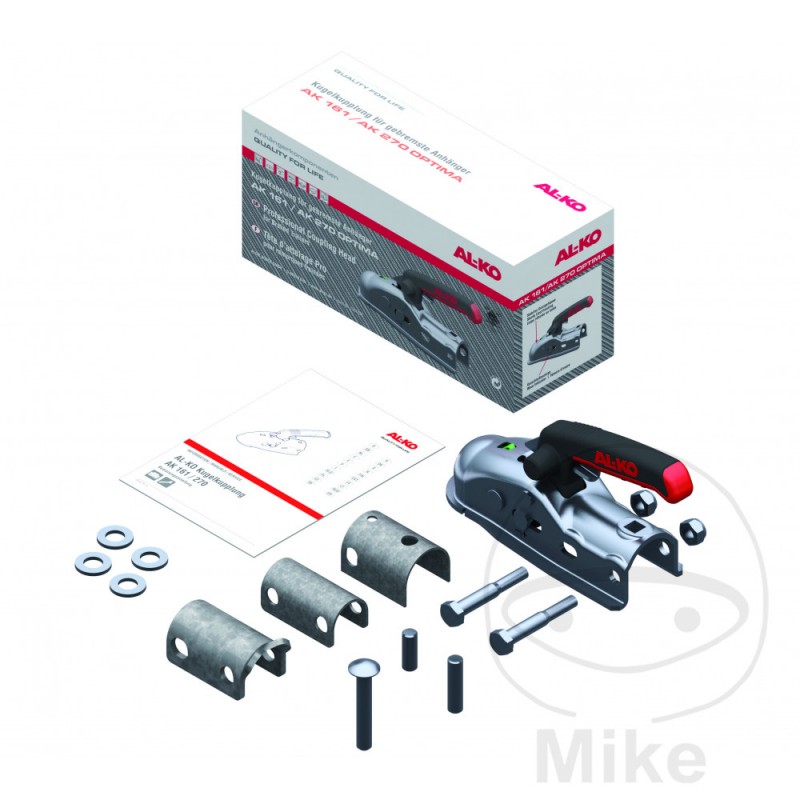

AL-KO Tow ball hitch head 2700 KG AK270 35/40/45/50/54 MM 338.15.71

Ball coupling AL-KO AK 270

Suitable for all common towing devices up to 2,300 kg (with AL-KO up to 3,000 kg) with horizontal or cross bores

Security display – If the green cylinder is visible in the coupled state, the coupling is correctly seated on the trailer coupling of the towing vehicle

Wear Indicator – An additional display on the coupling handle shows whether: A) the towing vehicle's coupling ball wear limit or B) the trailer coupling has been reached or not

Flat handle: The handle complies with the latest regulations and is very flat, so that the tailgate can be opened without breaking even on towing vehicles with a low loading threshold

Fixing: As with all AL-KO couplings, mounting is very simple. The old coupling is unscrewed and the new one is screwed on with two screws

Technical specifications:

Permissible total weight (with AL-KO): up to 2300 (2700) kg

Bearing load: 120kg

D-value: 31.0kN

Holes: horizontal and crossed

Material: sheet steel

Weight: 1.8 kilograms

Dimensions (see image 2)

Connection A Ø: 35 + 50 mm (horizontal) / 45 + 50 (transverse) mm

Connection B: 50 + 54 mm (horizontal) / 40 (transverse) mm

Connection C: 11 mm (horizontal) / 18 (transverse) mm

D-Length: 168mm
