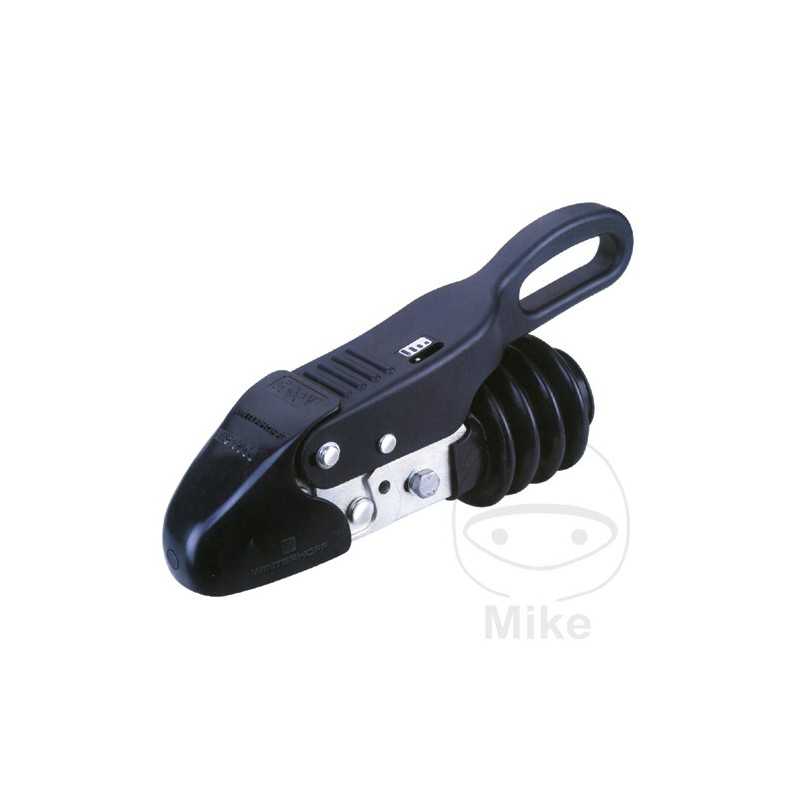

Winterhoff safety coupling "WS 3000 D" with track stabilization

The new WS 3000 has the excellent proven technology in which the friction elements are pressed axially, i.e. from rear to front, against the vehicle ball under high spring pressure, because this is the only way to suppress movements. pitching of the trailer in addition to dangerous swaying movements. .

- absorbs jerks and nods

- Single lever system for all functions: on/off Disengage, stabilize, unstabilize, secure, unlock

- Approved for 100 km / h according to ISO 11555-1

- retrofittable for all trailers

- reduced deadweight with a trailer load of 3,000 kg

- no input required

- additionally integrated automatic fuse

- Easy to read wear indicator

- CE approval No. 00-0065 e1

additional advantages:

Large free space at the rear of the vehicle.

With the WS 3000, it is also possible to couple vehicles with an externally attached spare wheel and a small clearance between the bumper and the ball.

Maxi soft buffer

The new Maxi-Soft-Buffer offers complete protection for the bumper and legs.

Clip system for all friction linings

Thanks to this specially developed system, all friction linings on the new WS 3000 can be replaced quickly and easily.

Unrestricted ball neck clearance

It is made possible by the extremely slim design. This makes the WS 3000 suitable for all standard towing devices. Usually, it is not necessary to remove any additional parts from the neck of the ball.

Clearance between handle and drawbar

The new one-piece handle shape increases the clearance between the handle and the drawbar.

Technical specifications:

Permissible load per axle: 3000 kg

Allowable vertical load: 150 kg

Drawing Tube: Round 35/40/45/46/50mm

Holes: 12.5mm

Connection: 40/54mm

Packing unit: 1
