Test device for measuring injector return pressure 614.04.59

Test device for measuring the return pressure of common rail piezo injectors

FPMK 01

Test device to measure the return pressure of piezo common rail injectors.

Suitable for quality testing of a common rail injector (good/bad-

Statement). The device has a transparent test block

Plexiglas with which air bubbles can be identified. advantage

of this test device is the possibility of changing the vacuum gauge in the

Test block.

The connection lines FPZ 01, FPZ 02 and FPZ 03 are in the control block

can be attached.

Printing area required for

BOSCH and VDO / SIEMENS injectors 1 ... + 15 bar.

Printing area required for

DELPHI injectors -1 ... + 3 bar.

Versatile

interchangeable vacuum gauge

Purge / pressure relief via drain valve

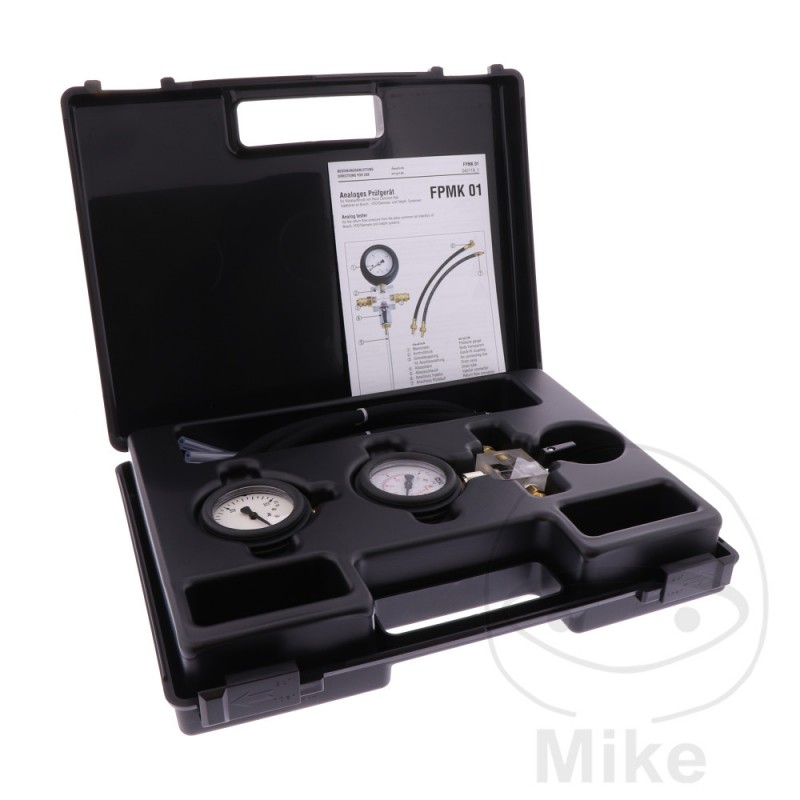

scope of delivery

1 test block with quick couplings and drain valve

1 vacuum manometer NG 63, measuring range -1 ... + 15 bar

1 vacuum manometer NG 63, measuring range -1 ... + 3 bar

1 hose set FPZ 01, attachable for VDO / SIEMENS injectors

1 set of hoses FPZ 02, attachable for BOSCH injectors

1 set of hoses FPZ 03, connectable for DELPHI injectors

1 brass cone

Delivered in a sturdy plastic box
