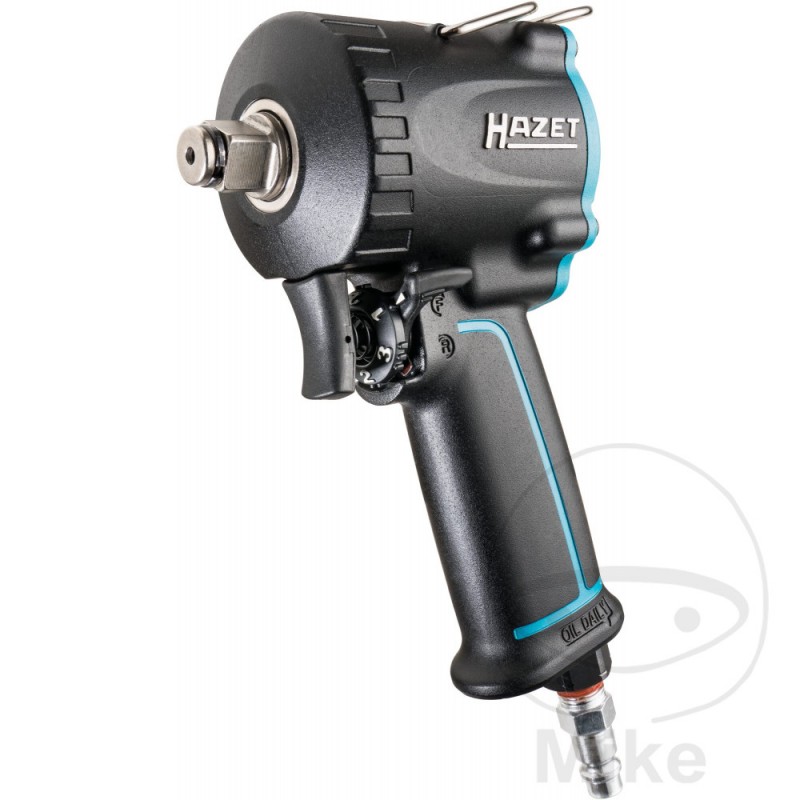

HAZET mini impact gun 1/2 9012 M-1 656.04.96

HAZET impact wrench extra short

Extra short: only 80 mm

One-handed operation for right and left-handed users

Exhaust air is led downward through the handle

Cold insulating handle

low vibration

easy to handle

Request:

Ultra-compact design optimized for working in tight spaces

giant hammer mechanism

Technical specifications:

Maximum loosening torque: 1200 Nm

Maximum tightening torque: 678 Nm

Recommended torque: 610 Nm

Net weight: 1.27kg

Dimensions / length: 80 mm

Air connection inlet: internal thread 12.91 mm (1/4 ?)

Coupling Plug - Nominal Width 7.2 (Included)

Hose diameter (recommended): 10 mm

Operating pressure (bar): 6.3

Sound power level (at operating pressure): 103.2 db (A) Lp W

Vibration acceleration: 13.49 m/s2

Loosening torque (max.) Determined with screw size M: 16

Forward/reverse: three stages (clockwise), one stage (counterclockwise)

Outlet: 12.5 mm (1/2 inch) square

Sound pressure level (at operating pressure): 92.2 dB(A) Lp A

Revolutions / minute: 8800

Air Requirement [l/min]: 127.4 l/min (2.1 l/sec)
