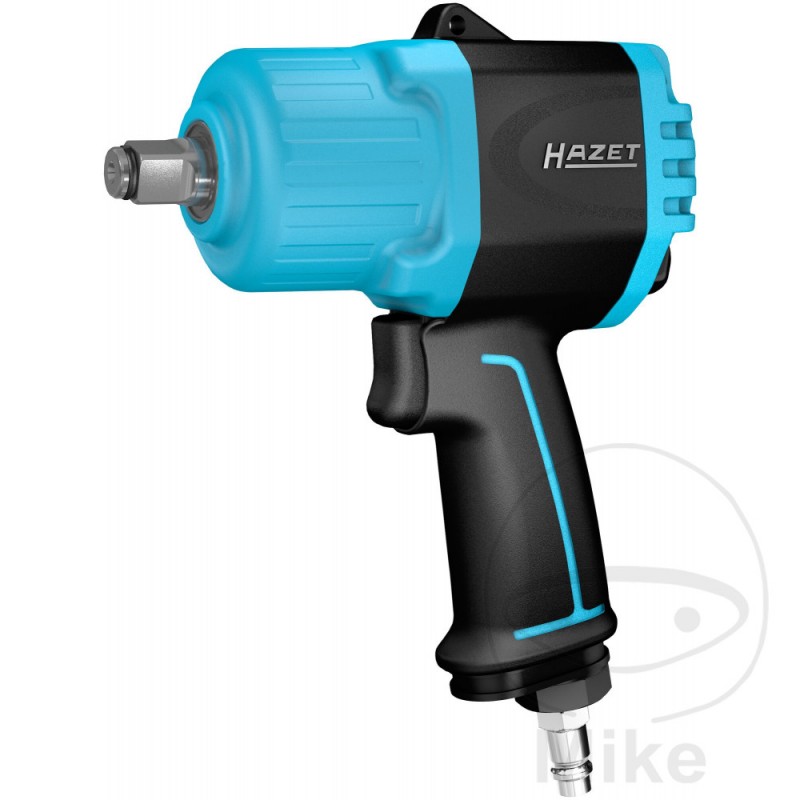

HAZET impact driver 1/2 2200NM 9012 TT 656.04.51

Twin Turbo Impact Wrench

Maximum loosening torque: 2200 Nm

Square 12.5 mm (1/2 inch)

Powerful double hammer impact mechanism

Exhaust air duct down through the handle

vibration

Easy to use

Short design: only 128 mm

HAZET Twin Turbo Technology

high torque in a compact design

Innovative 8-blade air motor with 25% higher impact performance guarantees maximum torque

One-handed operation for right and left-handed users

Powerful double hammer impact mechanism

Air connection inlet: internal thread 12.91 mm (1/4 ?)

Recommended torque: 948 Nm

Hose diameter (recommended): 10 mm

Operating pressure (bar): 6.3

Sound power level (at operating pressure): 110.7 db(A) Lp W

Vibration acceleration: 8.69 m/s2

Loosening torque (max.) Determined with screw size M: 16

Clockwise/counterclockwise rotation: two stages (clockwise rotation), one stage (counterclockwise rotation)

cold insulating handle

Outlet: square 12.5 mm (1/2 inch)

Net weight (kg): 1.6kg

Maximum tightening torque: 1356 Nm

Maximum loosening torque: 2200 Nm

Sound pressure level (at operating pressure): 99.7 dB(A) Lp A

Revolutions / minute: 8300

Air consumption [l/min]: 243.5 l/min (4.1 l/sec)
