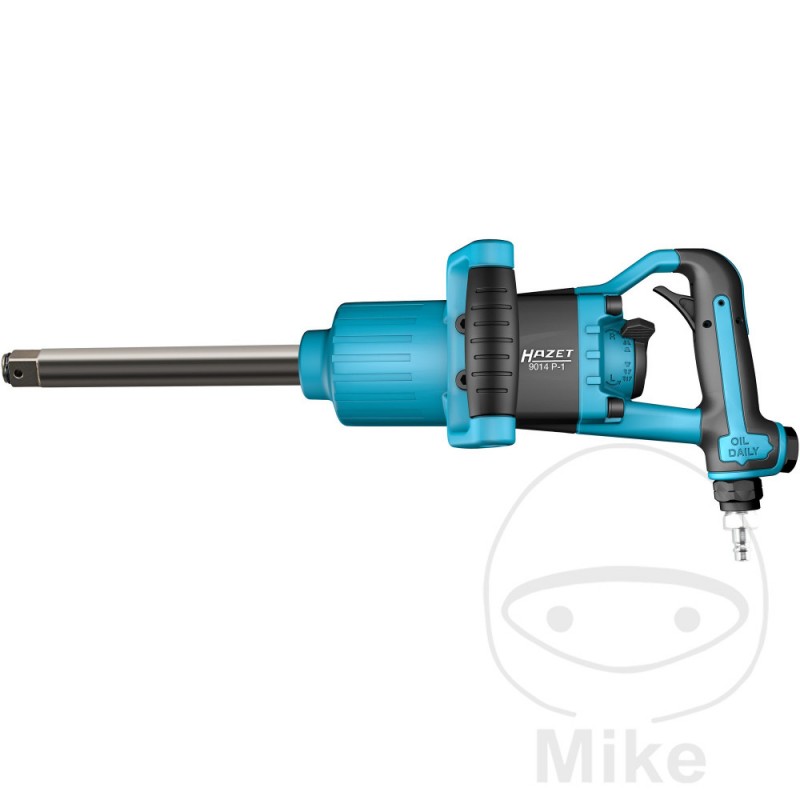

HAZET impact driver 1 9014P-1 656.04.35

HAZET 1" Impact Wrench



Drill with hole for fixing the tool and the retaining ring of the socket wrench.

Optimized duplex operation for left and right handed users.

one-hand switching

Air connection at the bottom of the handle and at the back possible

Air outlet duct through the handle downwards.

vibration

Direct hammer drums: less vibrations and higher performance

Long spindle (240 mm) for optimal access to wheel couplings

Air Inlet (From Compressor): Female Thread (Female Thread) 20.67mm (1/2")

Coupling plug: nominal diameter 10 (included)

Recommended torque: 2400 Nm.

Hose diameter (recommended): 19 mm.

Service pressure (bar): 6.3

Sound power level (at operating pressure): 114.5 db (A) Lp W

Screw size M: 36

Right / left rotation: three stages (right and left rotation)

cold insulation handle

Maximum tightening torque: 2712 Nm

Maximum starting torque: 3400 Nm

Sound pressure level (at operating pressure): 103.5 dB(A) Lp A

Air requirements [l/min]: 283 l/min (4.7 l/sec)
