manual fat press M10 X 1 648.00.32

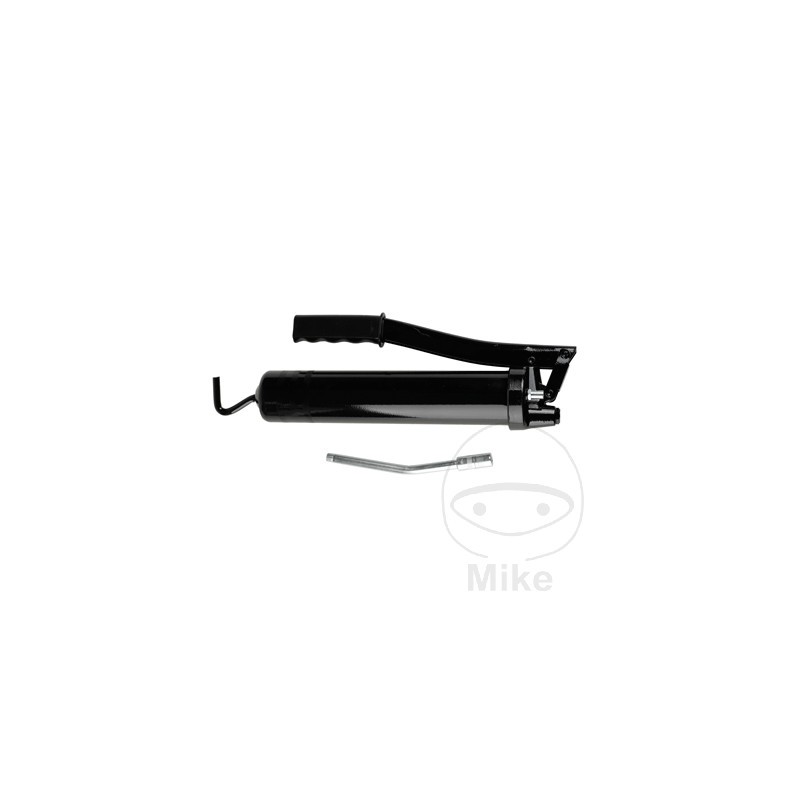

Pressol Manual Grease Gun 1, HHFP

Grease gun pressure side connection via metal adapter: M 10 x 1

Filling union and vent valve: M 10 x 1

Fill Volume (cc): 500 cc

Airflow / stroke: proportional to Handhebelweg, max. 1.4cc

Pressure: up to 400 bar

filling possibilities: 400 g grease cartridge DIN 1284, grease gun filling system or bulk grease

Finish: black

-Posi Lock

- Variable stroke system

- DOUBLE LOCK

- The device processes NLGI 2

- form collar with thick seat with bulk or cartridge grease

- According to DIN 1283

- pumping pistons with low tolerance to the cylinder

- No apparent lubrication, sealing system: O-ring and valve ball prevent the recoil of the compressed in the grease head of the grease gun

- power after 5000 operating cycles unchanged

- Separate fill and vent valve on the head of the grease gun

- Die Cast Zinc Z 410 grease gun head

- secure using a strong knurled grip

- Attach the handle to the push rod

- non-slip handle on the grease gun lever

- allows even with strong support a variable lubrication pressure with constant effort

- Difficult to access can be achieved as grease is reliably sucked at the smallest opening lever and can be pumped to the lubrication point

- loose cover with clamping element allows manual support of the spring force in each position for compression of loose grease or for pressing the sleeve on damaged cartridges

- quick exhaust by means of a rotation of the grease gun tube

Contents:

Hand grease gun with 1 nozzle tube, curved, M 10 x 1, 150 mm and 1 nozzle 4 BA, M 10 x. 1
