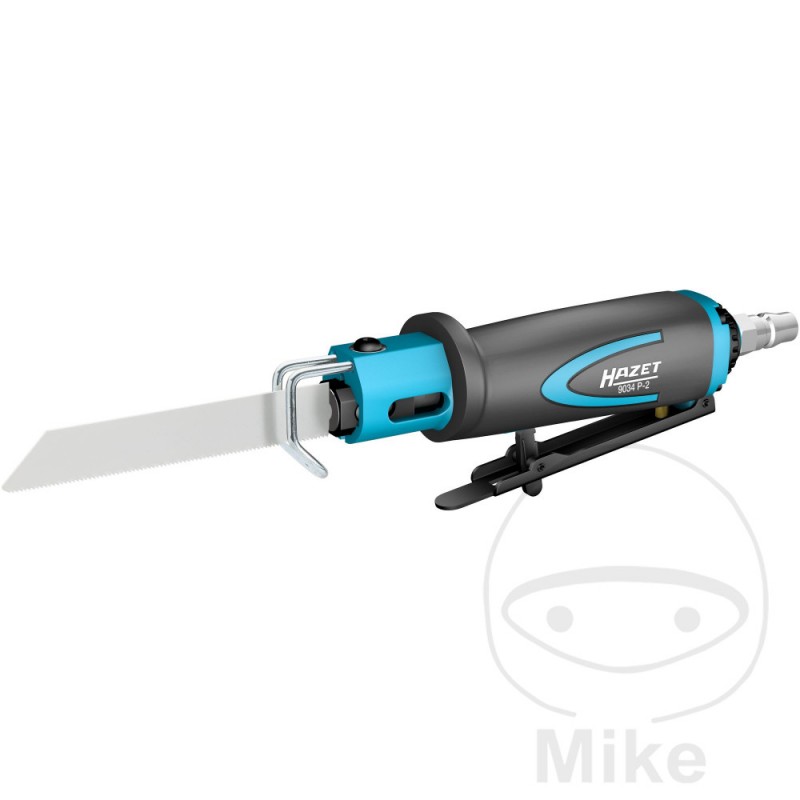

HAZET Pneumatic body saw 9034P-2 656.10.20

Height-adjustable bracket, can also be used for double-walled sheets

Increased performance with simultaneous reduction in weight, air consumption, noise and vibrations

Adjustable air outlet direction

Suitable for small saw radii

Aluminum cutting capacity: 4 mm

Steel sheet cutting capacity: 3 mm

Strokes / min.: 9500

Contents:

1 jigsaw

3 saw blades, 18 / 24/ 32 teeth each (total length: 93 mm)

1 saber saw blade, 18 teeth (total length: 153 mm)

5 files (total length: ~135 mm)

1 Allen key (in the handle)

Air connection inlet (from the compressor): Internal thread (IG) 12.91 mm (1/4?)

Coupling plug: nominal diameter 7.2 (included)

Hose diameter (recommended): 10 mm

Working pressure (bar): 6.3

Sound power level (at operating pressure): 97.7 db(A) Lp W

Vibration acceleration: 6.13 m/s2

Cutting stroke: 10 mm

Overall length: 160mm

Net Weight (kg): 0.4kg

Sound pressure level (at operating pressure): 86.7 dB(A) Lp A

Air requirement [l/min]: 99 l/min (1.6 l/sec)
