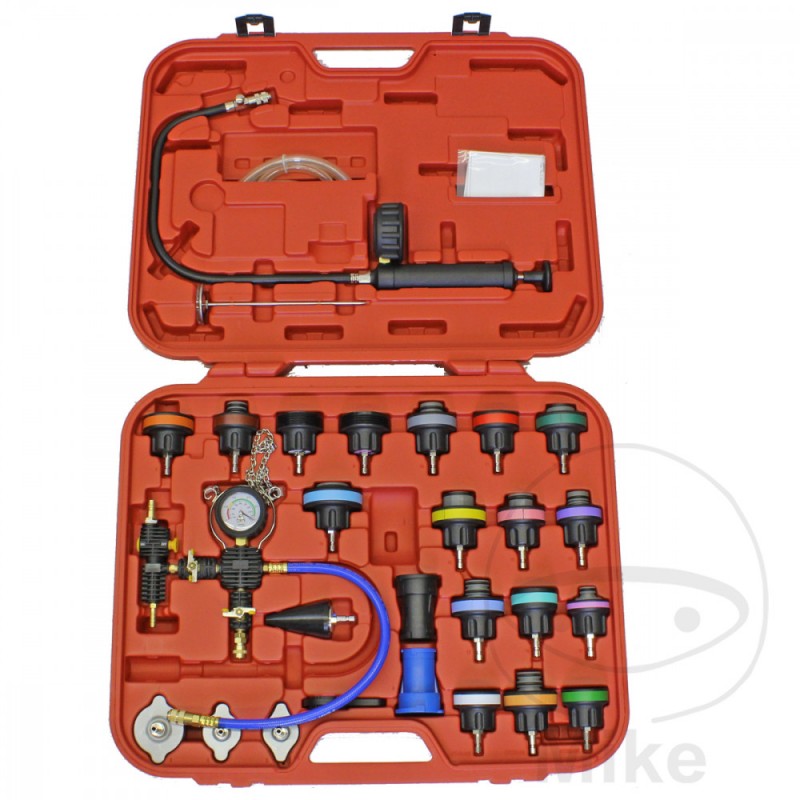

JMP Cooling system tester kit with filling unit 614.02.38

JMP Radiator System Diagnostic Kit, 25 Pieces

Complete assortment for service work in the cooling and heating system

Wide range of adapters suitable for all common vehicles with water-cooled engines

3 functions: Refrigerator pressure (leak check), filling and cleaning

Control of pressure loss by manometer

Filling by pre-generated vacuum in the refrigeration circuit. Advantage: bubble-free liquid suction

Trouble-free filling of even large motors with no thermal weaknesses

Universally adaptable filling system thanks to conical rubber connection piece

Supplied in a plastic case

Measuring range: 0 - 2.5 bar

Contents:

1 hand pump with pressure gauge, hose and discharge valve

1 cap test adapter, black (R123 / R124) and blue (R123 / R125)

1 bayonet adapter for cooling system, #3 (large), #4 (medium) and #5 (small)

11 threaded adapters for cooling systems with female thread: M 42 x 2.5 / M 42 x 3.0 / M 45 x 3.0 hollow / M 46 x 3.0 / M 48 x 2.5 / M 48 x 4.0 / M 50 x 2.5 / M 50 x 2.5 hollow / M 50 x 3.0 / M 52 x 3.0 / M 60 x 4.0 mm

3 cooling system screw adapters with external thread: M 34 x 3.0 / M 58 x 3.0 / M 62 x 3.0 mm

1 vacuum filling unit with manometer up to 76 cm HG = 1 bar

1 rubber cone adapter, 45 - 14 mm, length: 75 mm

1 thermometer, 0 - 220° C / 0 - 400° F
