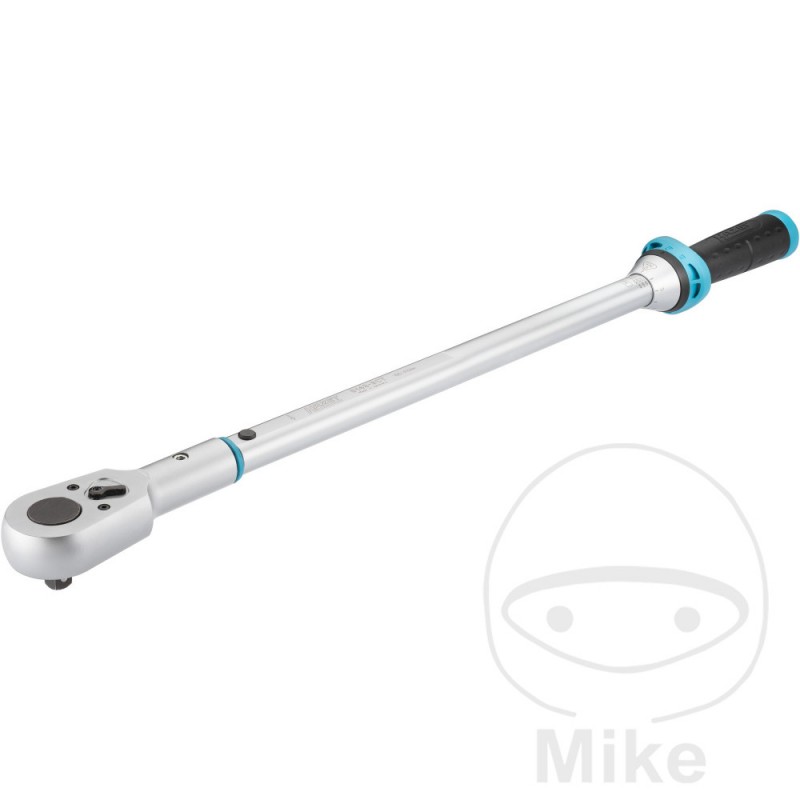

HAZET torque wrench 100-400 NM 1/2 607.51.43
€978.51
Tax included
torque wrench
For high torque applications: center axle bolts on FIAT Ducato and MERCEDES-BENZ Sprinter, wheel bearings on e.g. e.g. OPEL Movano and PEUGEOT Boxer, bearing blocks in agricultural machinery and gear blocks in commercial vehicles
Due to the possibility of using inserts / extensions for 12.5 mm (1/2 ?) socket wrenches, torque controlled screw connections from 100 to 400 Nm in areas of craft and industrial production, e.g. with M threads 12 to M 16 (resistance class 12.9) or M 16 to M 24 (resistance class 5.6) with restricted access, e.g. e.g., with flanges or mechanical bolting
Accuracy ± 3% of scale value (in direction of action) (5107-3 CT ± 4% accuracy of scale value)
Safe: haptic (short-path release), acoustic (articulated element)
Wide range of applications for controlled tightening of screws in tire service, two-wheelers, passenger cars, commercial vehicle applications, as well as various applications in industry and commerce.
Optimized sealing ring to protect against foreign bodies
Handle with more grip to facilitate power transmission
Adjustment aid via locking points for optimized operator guidance ensures that the desired torque value can be set quickly and safely by turning the handle
Safe locking of the set values by means of a lock function on the turntable
Triangle turntable prevents uncontrolled slippage
The lock symbols indicate the corresponding lock status.
Attachment option for rope loop through openings in locking turntable
Permanent readability through laser inscription on the sleeve of the scale
Lever lever with freewheel function – reduces the risk of injury and malfunction
Outlet: 12.5 mm (1/2 inch) square
Dimensions / length: 790 mm
Net weight (kg): 3.6 kg
Nm min-max: 100 - 400 Nm
Tolerance: 3%
Scale division (Nm): 2.5 Nm
Effective length of torque wrench min.-max. l1mm: 687.80 - 675.80 Nm
Actuating force min.-max. kg: 14.8 - 60.3 kg
Number of teeth: 32 (working angle 11.25 °)
Head thickness a: 28.5mm
Head width b: 64 mm
No more going back – with the HAZET 5000 and 6000 series torque wrenches, long-term endurance tests have shown that there is no need to go back to the smallest scale value
For high torque applications: center axle bolts on FIAT Ducato and MERCEDES-BENZ Sprinter, wheel bearings on e.g. e.g. OPEL Movano and PEUGEOT Boxer, bearing blocks in agricultural machinery and gear blocks in commercial vehicles
Due to the possibility of using inserts / extensions for 12.5 mm (1/2 ?) socket wrenches, torque controlled screw connections from 100 to 400 Nm in areas of craft and industrial production, e.g. with M threads 12 to M 16 (resistance class 12.9) or M 16 to M 24 (resistance class 5.6) with restricted access, e.g. e.g., with flanges or mechanical bolting
Accuracy ± 3% of scale value (in direction of action) (5107-3 CT ± 4% accuracy of scale value)
Safe: haptic (short-path release), acoustic (articulated element)
Wide range of applications for controlled tightening of screws in tire service, two-wheelers, passenger cars, commercial vehicle applications, as well as various applications in industry and commerce.
Optimized sealing ring to protect against foreign bodies
Handle with more grip to facilitate power transmission
Adjustment aid via locking points for optimized operator guidance ensures that the desired torque value can be set quickly and safely by turning the handle
Safe locking of the set values by means of a lock function on the turntable
Triangle turntable prevents uncontrolled slippage
The lock symbols indicate the corresponding lock status.
Attachment option for rope loop through openings in locking turntable
Permanent readability through laser inscription on the sleeve of the scale
Lever lever with freewheel function – reduces the risk of injury and malfunction
Outlet: 12.5 mm (1/2 inch) square
Dimensions / length: 790 mm
Net weight (kg): 3.6 kg
Nm min-max: 100 - 400 Nm
Tolerance: 3%
Scale division (Nm): 2.5 Nm
Effective length of torque wrench min.-max. l1mm: 687.80 - 675.80 Nm
Actuating force min.-max. kg: 14.8 - 60.3 kg
Number of teeth: 32 (working angle 11.25 °)
Head thickness a: 28.5mm
Head width b: 64 mm
No more going back – with the HAZET 5000 and 6000 series torque wrenches, long-term endurance tests have shown that there is no need to go back to the smallest scale value
607.51.43
