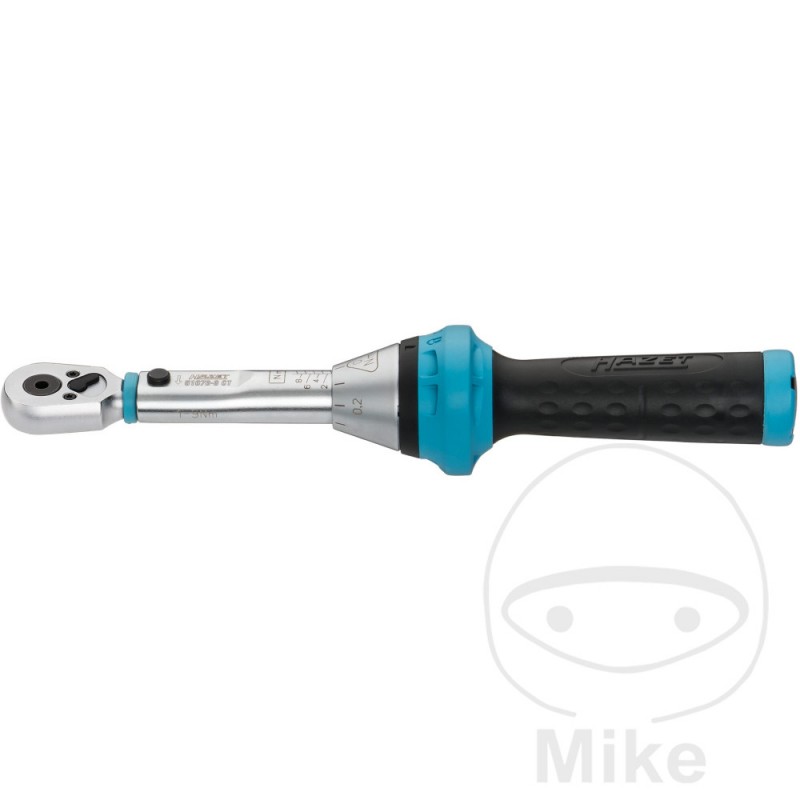

HAZET torque wrench 1-9NM 1/4 607.00.38

torque wrench

Easy-to-use reversible ratchet for drill bits

Accuracy ± 3 or 4 % of the scale value (in the drive direction for clockwise tightening)

Safe: Haptic (short stroke release), acoustic (buckling element)

Designed for heavy-duty use in the shop

Wide range of applications for controlled tightening of screws in tire service, two-wheeler, automotive and commercial vehicle applications, as well as various applications in industry and commerce.

Optimized sealing ring for protection against foreign bodies

Handle with more grip to facilitate the transmission of power

Setting aid with detent points for optimized operator guidance ensures safe and quick setting of the desired torque value by turning the handle

Safe locking of setting values by means of a hold function on the rotary crown

Triangular turntable prevents uncontrolled rolling

Lock symbols indicate the corresponding lock status

Possibility to attach a rope loop through openings in the locking turntable

Easy to read, high contrast scale

Permanent readability thanks to laser inscription on the balance sleeve

integrated gear stick

With calibration certificate and serial number

For, for example, maintenance and overhaul work on the burner flange or the electrodes of the compact modules of condensing boilers and gas combi boilers

For aluminum and carbon parts - plastic accessories - motorcycle fairings - scooters - bicycles

DIN EN ISO 6789-2:2017

Outlet: Hexagon 6.3 (1/4 inch)

Dimensions / length: 234 mm

Nm min-max: 1 - 9 Nm

Tolerance: 4

Graduation (Nm): 0.1 Nm

Torque wrench effective length min.-max. l1mm: 176.20 - 166.20 Nm

Actuating force min.-max. kg: 0.6 - 5.5 kg

Number of teeth: 20 (working angle 18°)

Head thickness a: 10.2mm

Head Width b: 24mm

There's no going back: HAZET 5000 and 6000 series torque wrenches have proven in long-term endurance tests that there is no need to go back to the smallest scale value.
