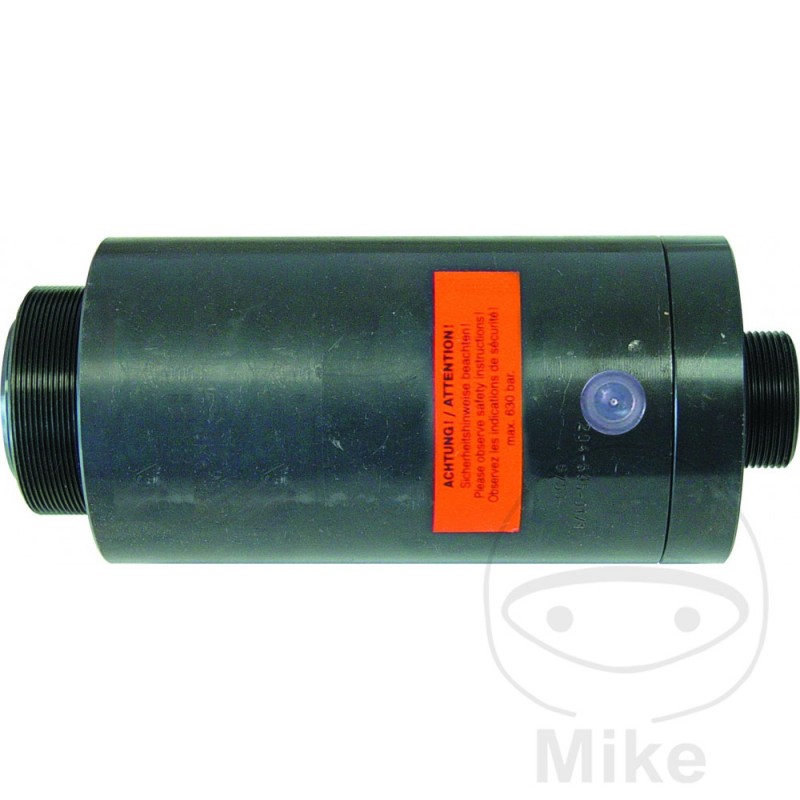

hydraulic cylinder 28 TO 617.26.13

Gedore Automotive hydraulic cylinder 28t

Due to its special construction as a hollow piston cylinder and in connection with the different spindles, this hydraulic cylinder is suitable for pushing and pulling

It can be used in conjunction with various tools from Gedore Automotive (Klann) to remove and install cardan shafts, hubs, wheel bearings, silent blocks and ball joints.

With 3/8 "NPT threaded connection

Attention: The drive of this hydraulic cylinder requires a hydraulic pump.

Technical data:

Max allowable force: 285 kN (28 t)

Max stroke: 50mm

Oil volume max.: 216.3 cm³

Piston area: 40.6 cm².

Thread in the hollow piston: M24

Mounting Thread Pressure Side: 2 ¾"-16 US

Fixing thread on the tension side: M42 × 2

Cylinder outer diameter: 99mm

Retracted cylinder height: 235 mm.

Cylinder Total Height Piston extended: 285 mm

Oil connection: 3/8" NPT

Weight: 9.6 kg.

Hydraulic oil: HLP 46 or HLPD 46

Scope of supply:

households

Engine Piston

Inner tube

threaded ring

ADAPTER

Compression spring

Sealing ring Ø 80 mm.

Sealing ring Ø 43 mm.

Circlip SB85

Ø70 mm protective cover.

M10 x 20mm socket head screw

Label "Attention"

Protective cap Ø 42 mm

Blind plug for 3/8 "NPT
