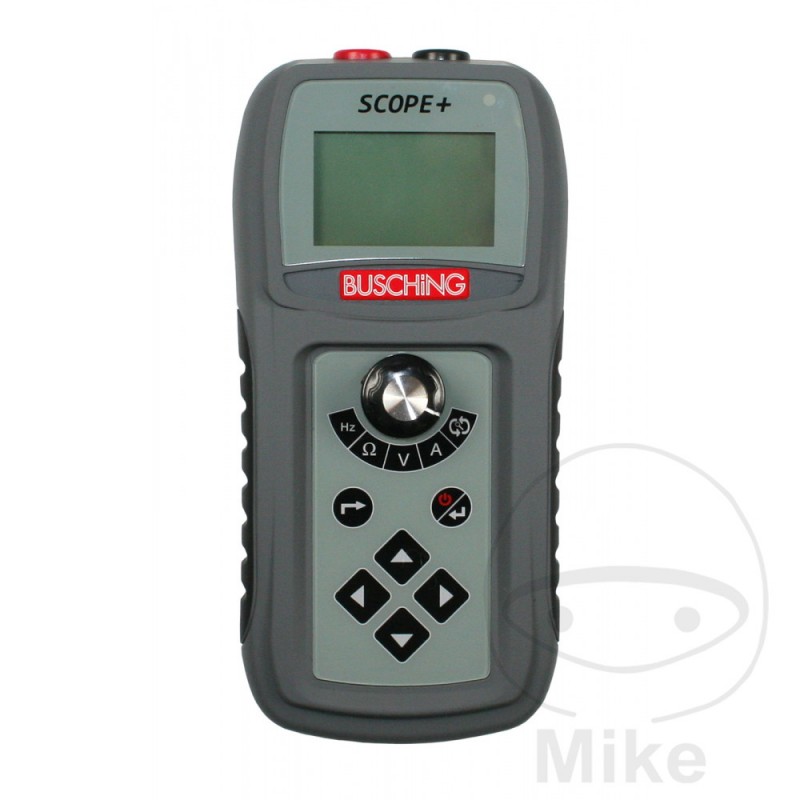

multilogic tester 609.09.11

Multi-logic tester "Scope+

The SCOPE+ combines the functions of a multimeter and a multitester in one device.

The tester is used for rapid diagnosis of the vehicle's electrical system.

The measurement results are displayed graphically and acoustically.

Technical data:

Automatic selection of the measuring range "Auto Range": 6/12/24 V

Starting test: 12/24 V

Alternator test: 12/24 V

DC voltage measurement range: 0 - 50 V DC +-2%.

Measuring range Direct current / parallel connection:

0 - 80A +-3%

3 - 30 A (minifuse)

3 - 40 A (ATC fuse)

20 - 80 A (Maxi fuse)

Measuring range direct current / series connection:

1 - 999 mA +-1% (adaptor)

1 - 30 A +-2% (adaptor)

Measuring range resistance: 0 - 1 MO +-2%.

Measurement range frequency/clock speed/percentage

Continuity Tester: Buzzer/LED

Display: LCD graphic backlight

Power: 3 x AA

Dimensions: 260 x 180 65mm

Weight: 0.74kg

Scope of delivery:

1 x Scope+ multi-logic tester

2 x Red/Black Silicone Test Leads

1 x max.1A silicone test adapter

1 x max.30A silicone test adapter

2 red/black insulated safety clamps

1 x Soft Case

1 INSTRUCTION MANUAL
