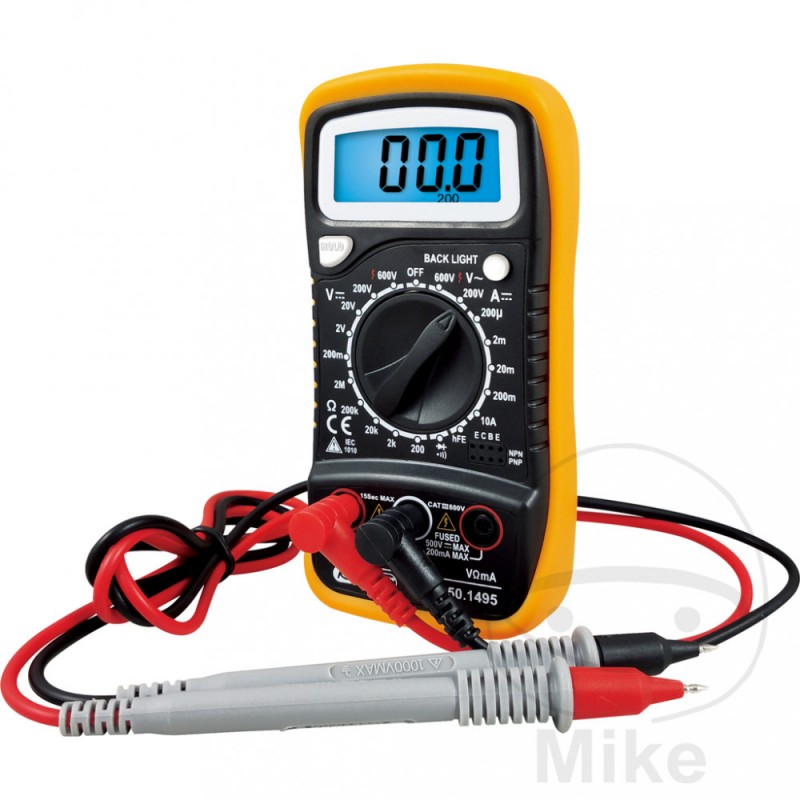

digital multimeter with test leads 609.03.56

digital multimeter with test leads

Professional multimeter specially developed for automotive and commercial vehicle electricity and electronics

High-contrast, single-line LCD display with backlight

with automatic overflow and polarity indication

with safety mechanism for V, µA / mA / A, so that incorrect connection is impossible

19-digit central rotary switch

Large, high-contrast 3.1/2-digit LCD display with backlight

indication of the charging status on the screen

with integrated glass fuse 250mA / 600V, 10A / 600V - 32 x 6 mm for circuit protection

includes test lead set with test leads

with on/off switch and automatic temperature cut-off

with foldable, two-position adjustable bracket in a protective rubber sleeve

Durable plastic housing

Functions:

Measurement of direct and alternating voltage

Measurement of direct and alternating current

resistance measurement

Diode test (with acoustic signal)

Continuity test (with acoustic signal)

Data hold function

battery check indicator

Technical data:

General field of application: motor vehicle

Resistance measurement: 200 Ohm - 2 Megaohm

Continuous current: 20 µA - 10 A

Forward voltage: 200 mV - 600

Protection by fuse S1 (fine current): 250mA/600V; 10A/600V

Weight [g]: 342

Function attribute 1: Hold function

Power: 9 V block battery

AC voltage: 200 V - 600

Length [mm]: 138

Width in mm: 69

Depth in mm: 31.0

Digital screen

Storage temperature: -10° to +50° C (14° to 122° F)

Operating temperature: 0° to +40° C (32° to 104° F)
