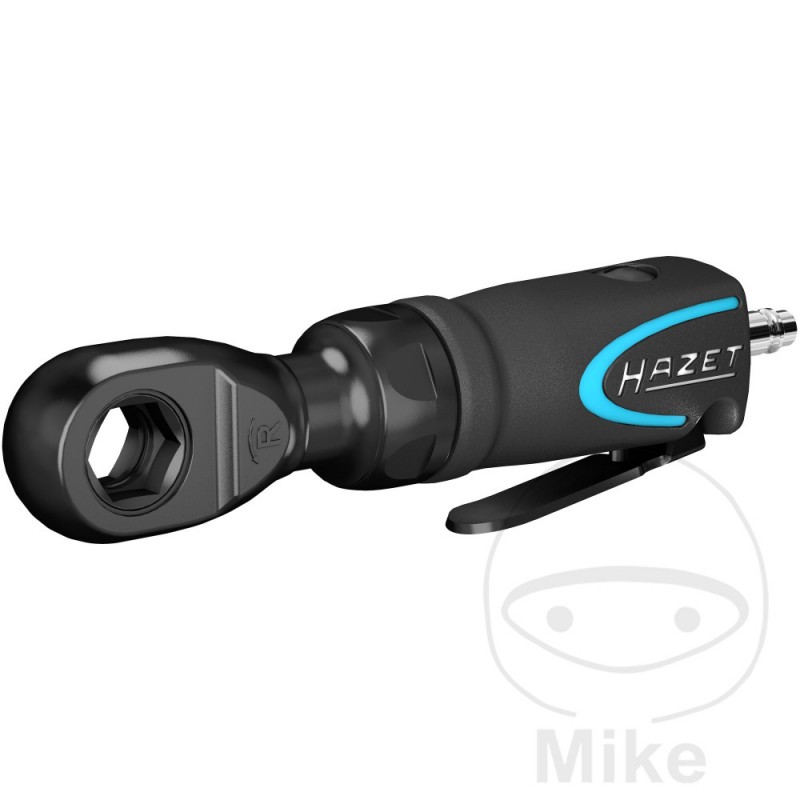

HAZET Multi-Function Mini Pneumatic Ratchet Screwdriver 9023 M-1 656.04.55

Mini Multifunction Ratchet Screwdriver

With a 17mm open hexagon, it also allows machining of extra long threads.

By replacing ratchet heads with 1/4-inch (6.3 mm) square, 3/8-inch (10 mm) square, 1/4-inch (6.3) hex.

short design

vibration

Exhaust air routing through the handle

For hand tightening with tightening torques of 70 Nm

Content 4 tools:

- push ratchet

- 6.3 mm (1/4 inch) square insert

- 10 mm (3/8 inch) square insert

- 6.3 mm (1/4 inch) hex bit insert

Air connection inlet: internal thread 12.91 mm (1/4 ?)

Mating plug: nominal size 7.2 (included)

Hose diameter (recommended): 10 mm

Operating pressure (bar): 6.3

Sound power level (at operating pressure): 93.8 db(A) Lp W

Vibration acceleration: 3.20 m/s2

Right/Left Rotation: One Stage (Right/Left)

cold insulating handle

Outlet: 6.3 mm (1/4 inch) square, 10 mm (3/8 inch) square, 6.3 (1/4 inch) hexagon

Dimensions: 159mm

Net weight (kg): 0.48kg

Maximum tightening torque: 54 Nm

Sound pressure level (at operating pressure): 82.8 dB(A) Lp A

Revolutions / minute: 400

Air consumption [l/min]: 84 l/min (1.4 l/sec)

Pneumatic program "Mini"

Innovative 5-blade concept for even greater power than conventional units

High reliability and continuous operation.

small and manageable

safety release lever
