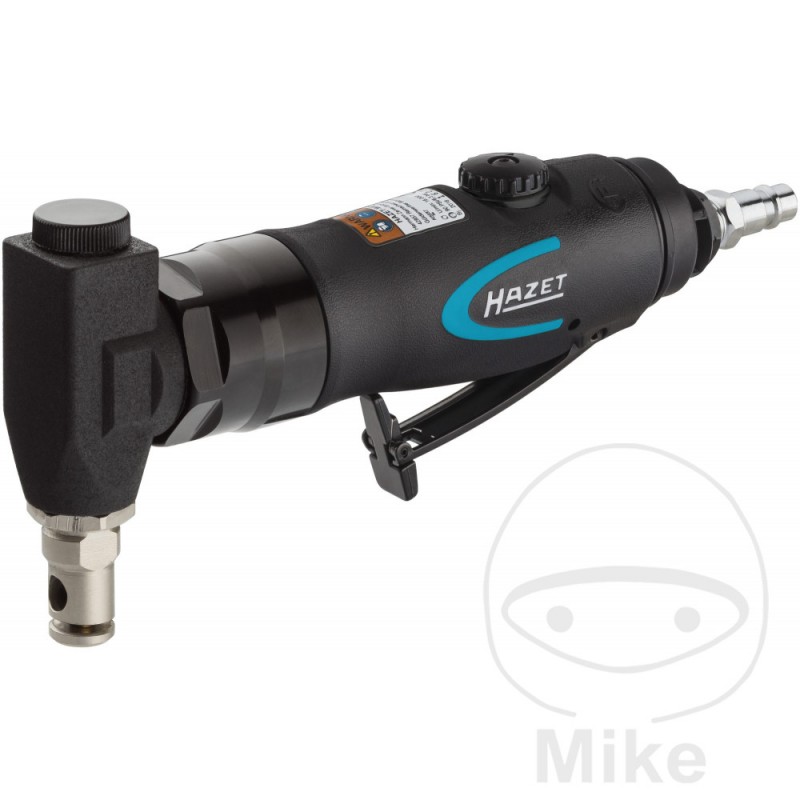

HAZET Pneumatic Sheet Metal Cutter 9036N-1 656.04.08

Ideal for cuts with small radii (at least 4.5 mm).

It is also suitable for cutting plastic.

Infinitely variable speed control via knob on handle backwards

Cutting capacity: 1.2 mm steel / 1.6 mm aluminum.

Cutting width: 4.5 mm.

Air connection inlet (from compressor): female thread (IG) 12.91 mm (1/4")

Coupling plug: nominal diameter 7.2 (included)

Hose diameter (recommended): 10 mm.

Service pressure (bar): 6.3

Sound power level (at operating pressure): 87 db (A) Lp W

Vibration acceleration: 1.90 m/s².

Wattage: 370 watts (0.503 hp)

cold insulation handle

Overall length: 185mm.

Net weight (kg): 1kg

Sound pressure level (at operating pressure): 80 dB(A) Lp A

Revolutions / minute: 2600

Air requirements (l/min): 104 l/min (1.7 l/min)
