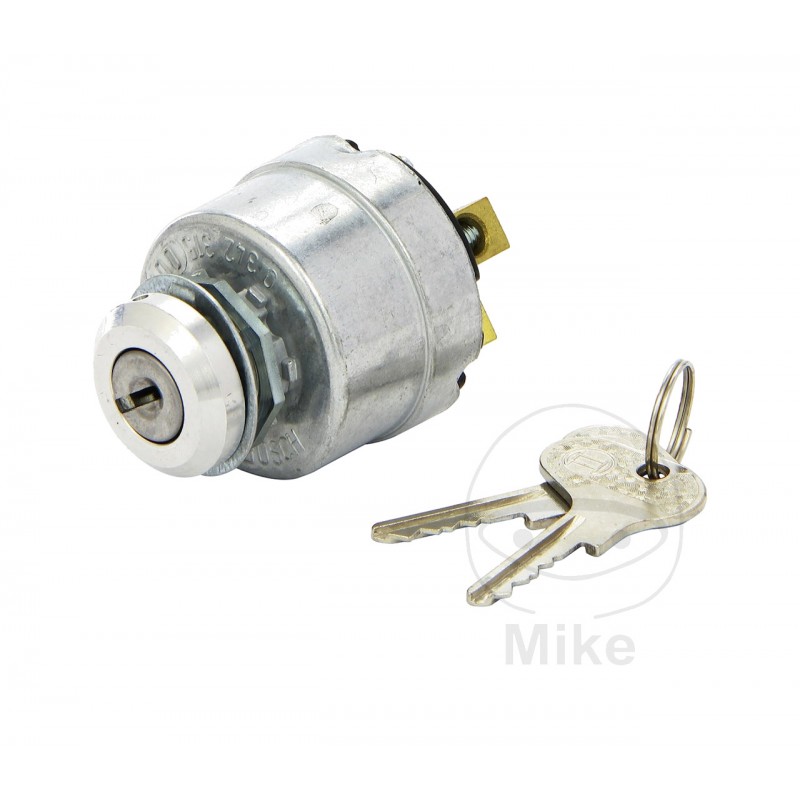

BOSCH Ignition/starter switch 1453703

Bosch key start switch / glow start switch

Nickel-plated key, lock no. E30

With security lock and two keys

The key can only be removed in the "Off" position.

Drive type: rotary drive

Switch function: start, preheat

Switch positions: 4 (0 = off, 1 = on, 2 = preheat, 3 = start)

Connection type: Screw connection (screw terminals)

Mounting type: With octagonal nut and round nut alu-matt

Installation: Ø 22.5 mm, with recess (torsion-resistant), wall thickness up to 6 mm

Rated voltage: 12 / 24 V

LOADING CAPACITY:

Terminal 15: 150 W / 24 V (continuous operation: 13 A / 24 V)

Terminals 17, 19: 33 A / 24 V

Terminals 50a: 18 A / 12 V and 9 A / 24 V

Duty cycle 2 min
