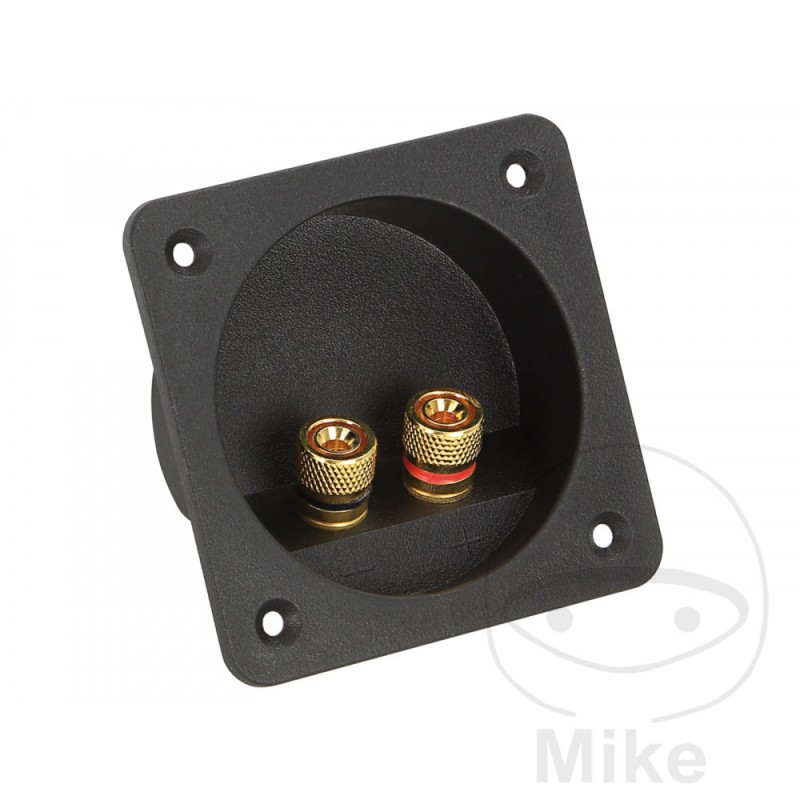

ACV 2-pole speaker terminal 1940897

bipolar speaker terminal

Speaker terminal for the construction of speaker cabinets or subwoofers.

For connecting speaker cables with 4mm banana plugs.

Alternatively as a screw terminal for direct connection of loudspeaker cables up to 4 mm² to minimize contact resistance.

Recessed design to prevent shipping damage to connections.

Large contact surface to guarantee tightness.

golden connections.

For the following applications:

Construction of speaker cabinets

Construction of enclosures for subwoofers

Technical data:

Material: 3mm ABS plastic

Mounting Dimensions: 78.3mm x 78.3mm

Mounting diameter: Ø 67 mm

Distance between holes: 59 mm

Hole diameter: Ø 4 mm

Countersunk hole: Ø 7.3 mm x 1.5 mm

External connection: Banana connection Ø 5 mm / threaded connection Ø 5 mm

Inner Connection: Flat Tab 5.2mm / Solder Tab

Optional:

Banana plug 1 x red/1 x black 4 mm²>6mm² Single plug: 30.4070-01

Banana plug 1 x red/1 x black 4 mm²>6mm² Double plug: 30.4070-02
