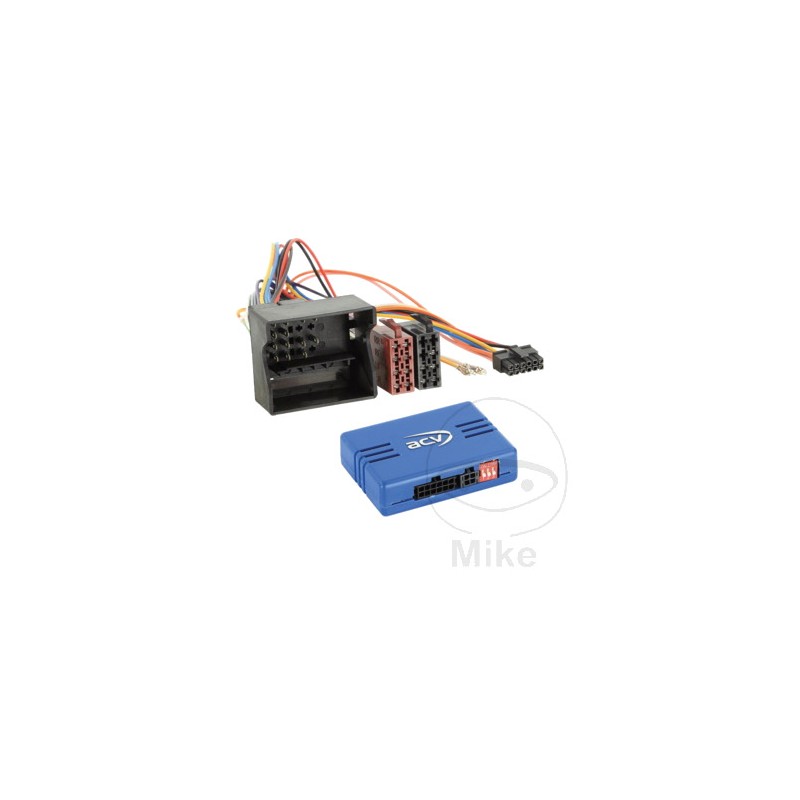

ACV Adapter cable LFB INTERFACE 1940819

LFB BMW/Mercedes/Smart/VW various vehicles 40Pin Quadlock

Steering wheel remote control adapter BMW / Mercedes / Smart / VW

Keep the original functions of your steering wheel remote when you replace your factory radio with an aftermarket radio.

Please compare the illustrated connectors on the adapter with those on your vehicle and make sure that they fit optically and technically.

Also check if one of the specified original factory radios was installed in your vehicle.

Note:

CAN bus

Connection: 40-pin Mercedes Quadlock plug > Item: 42cx28

Check DIP switch position

Mercedes vehicles without audio gateway

Mercedes vehicles with audio gateway > Item: 1195-25-2500-0 / 1195-25-6500-0 / 42a-1190-001

Mercedes vehicles with OEM Harman Kardon sound system > Article: 194 08 01 / 13-1190-53

Departures:

pink: +12V on terminal 15 1.5A max.

orange: +12V terminal 58 lighting 0.1A max.

white: +12V reverse 1.5A max.

Fit for the following vehicles

BMW 1 series (E81/E82/E87/E88) 03/2004 - 10/2013**/***

BMW 3 series (E90/E91/E92/E93) 03/2005 - 10/2013**/****

MERCEDES

Mercedes A-Class (W169) 10/2004 - 04/2012

Mercedes A-Class (C169) 11/2004 - 07/2011

Mercedes B-Class (T245) 6/2005 - 06/2011

Mercedes C-Class (W203) 02/2004 - 09/2007

Mercedes C-Class (W204) 08/2007 01/2011

Mercedes C-Class (W204) 03/2011 - 10/2015

Mercedes CLK-Class (W209) 04/2005 - 01/2010

Mercedes E-Class (W211) 03/2008 - 01/2009

Mercedes E-Class (W212) 02/2009 - 03/2013**

Mercedes G-Class (W463) 04/2007 - 06/2008

Mercedes G-Class (W164) 09/2008 - 06/2012

Mercedes GL-Class (X164) 09/2006 - 05/2009

Mercedes GL-Class (X164) 05/2009 - 07/201

Mercedes M-Class (W164) 07/2005 - 04/2008

Mercedes M-Class (W164) 10/2008 - 07/2011

Mercedes ML (W164) 07/2005 - 04/2008

Mercedes ML (W164) 10/2008 - 07/2011

Mercedes R-Class (W251) 09/2005 - 05/2007

Mercedes R-Class (W251) 05/2007 - 05/2010

Mercedes SLK-Class (R171) 04/2008 -03/2011

Mercedes Sprinter (W906) 04/2006 - 08/2013

Mercedes Sprinter (W906) 08/2013 - 05/2018

Mercedes Sprinter (W907/W910) 06/2018 - 12/2020*/***

Mercedes Sprinter (W907/W910) 11/2019 - 2022*/***

Mercedes Vito/Viano (W639) 07/2003 - 08/2010

Mercedes Vito/Viano (W639) 09/2010 - 03/2014

Mercedes Vito (V447) 10/2014 - 02/2019*/**/***

Mercedes Vito (V447) 05/2019 - 2022*/**/***

SMART

Smart For Four (W454) 01/2004 - 04/2007

GREEN WHITE

VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011

VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

The following signals are provided:

IGNITION

Lighting

reverse

speedpulse

steering wheel remote control

References:

*Vehicles with E-Call > Article: 1424-27-0

**Vehicles with +12 V DC cut-off function > +12 V DC connection terminal 30 battery with fuse

***Vehicles with OEM Audio 10 device only supports loud/mute function

***Encode vehicle to Audio 15 OEM unit if necessary

****Vehicles with Rear PDC > Item: 42cxpdc

Connection cable for the following radio manufacturers:

Multilead various devices: 42arc100

Alpine 3.5mm jack plug: 42arc101

Blaupunkt 2010> 3.5mm jack connector: 42arc107

Blaupunkt 2010 > Key1 / Key2 / (GND) connector: 42arc000

China HU Key1/Key2/(GND) connector: 42arc000

Clarion 3.5mm jack plug: 42arc104

Digital Dynamics Single Wire Connector: 42arc108

ESX Key1 / Key2 connector: 42arc000

JVC 3.5mm jack connector: 42arc104

JVC Single Wire Connector: 42arc105

Kenwood single wire connector: 42arc105

Kenwood 2017> 3.5mm jack plug: 42arc107

Kenwood 2020> Key1/Key2/GND Connector: 42arc000

Pioneer 3.5mm jack plug: 42arc107

Snooper Key1 / Key2 connector: 42arc000

Sony 3.5mm jack plug: 42arc107

XZent Single Wire Connector: 42arc108

Zenec single wire connector: 42arc108


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW/
COMPATIBLE WITHMERCEDES-BENZ/SMA/VW
