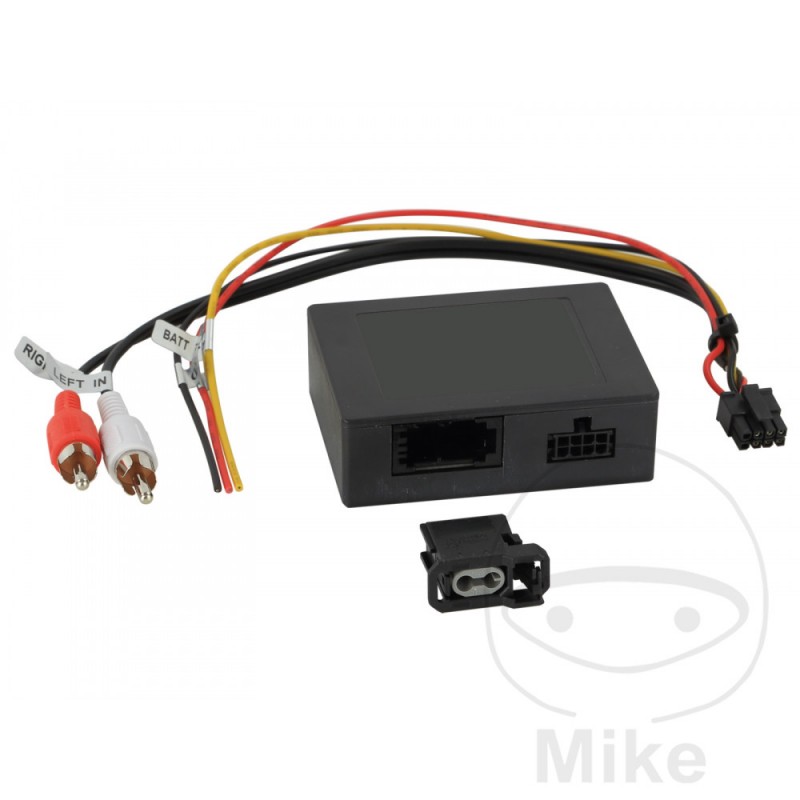

ACV Sound system adapter cable 1940801

Mercedes/Porsche MOST Active System Adapter>Cinch

Active System Adapters are used to maintain factory-installed sound systems.

They allow retrofit radios to be connected to the vehicle's own active system, while retaining the OEM amplifier and connected speakers by matching, matching or converting the output signals from the signal source to the signal input from the OEM amplifier.

Depending on the vehicle and the OEM active system installed, various features such as faders or sound and subwoofer settings may be bypassed.

In some cases, depending on the OEM system and retrofit radio, increased noise or connection or disconnection noise may occur.

Note:

Connection: OEM MOST Sound System > Red/White Cinch

Connection: loose wire

Vehicles with OEM MOST25 sound system

Mercedes vehicles with 40-pin Quadlock connector

Mercedes vehicles with OEM Comand APS NTG2 / NTG 2.5 navigation system

Mercedes vehicles without OEM Comand 2.0 / 2.5 navigation system

Mercedes vehicles without D2B optical bus system

Porsche 986 / 911 / 996 vehicles without YAZAKI Opical Bus System

yellow: +12V direct current terminal 30

black: ground terminal 31

red: +12V switched ignition current terminal 15 / Amp Remote / Antenna Remote

Cinch > Radio Retrofit Front Preamp Output

Fader function not supported

OEM Additional Components > Remove CD Changer / TV Tuner / Telephone Module from MOST Ring

MOST ring fiber optic connector > Item: 194 09 02

Fiber Optic Loop (f) MOST Ring > Item: 194 08 98

Check function before final assembly.

Suitable for the following vehicles

Mercedes A-Class (W169) 10/2004 - 04/2012

Mercedes A-Class (C169) 11/2004 - 07/2011

Mercedes B-Class (T245) 6/2005 - 06/2011

Mercedes C-Class (W203) 02/2004 - 09/2007

Mercedes CLK-Class (W209) 04/2005 - 01/2010

Mercedes GL-Class (X164) 09/2006 - 05/2009

Mercedes GL-Class (X164) 05/2009 - 07/2012

Mercedes M-Class (W164) 07/2005 - 04/2008

Mercedes M-Class (W164) 10/2008 - 07/2011

Mercedes ML (W164) 07/2005 - 04/2008

Mercedes ML (W164) 10/2008 - 07/2011

Mercedes R-Class (W251) 09/2005 - 05/2007

Mercedes R-Class (W251) 05/2007 - 05/2010

PORSCHE

Porsche 911 (997) 07/2004 - 08/2009

Porsche 911 (977) 08/2008 - 05/2013

Porsche Boxster (987) 10/2004 - 01/2009

Porsche Cayenne (9PA/955) 09/2002 - 12/2006

Porsche Cayenne (9PA/955) 02/2007 - 02/2010

Porsche Cayman (987C) 11/2005 - 01/2008


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MERCEDES-BENZ/POR MOST-CINCH
