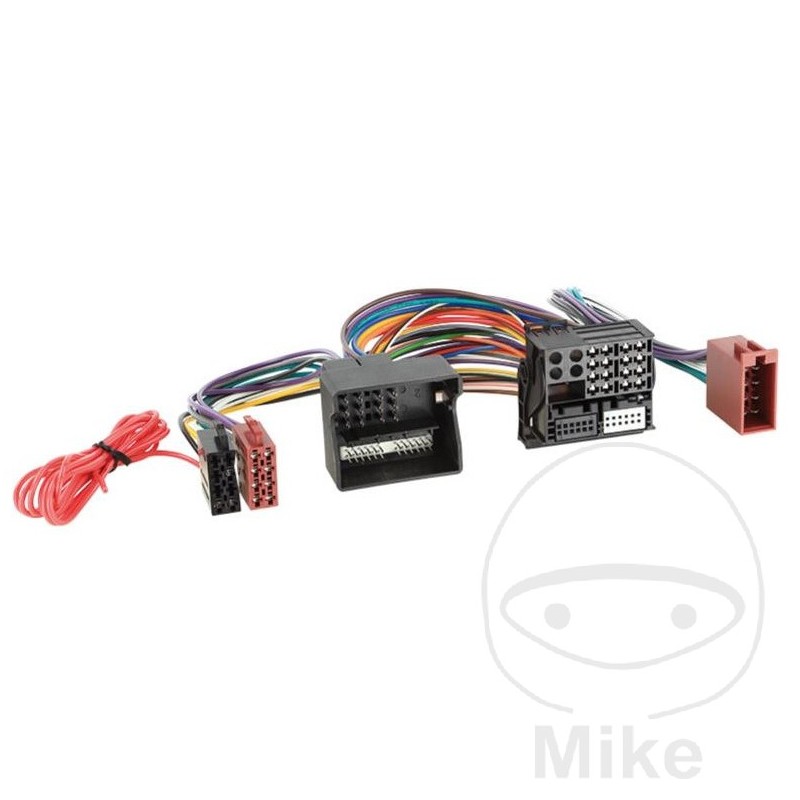

Fully connected Audi/Seat/Skoda/VW Quadlock T-wire set

T-wire harnesses allow power and/or speaker wiring to be branched from the vehicle's radio harness without damaging it or affecting the operation of the factory radio.

This makes the installation of additional components such as hands-free kits, power amplifiers or high-low converters into the vehicle's specific radio wiring harness retrofittable.

Note:

Connection: 40 pin quadlock (m/f) VAG MQS connector insert fully assigned.

On vehicles with active sound systems as standard, the T-wire harnesses can only be used to a limited extent or not at all.

red: +12V on terminal 15 fuse

Audi / Seat Exeo vehicles with 2-DIN OEM unit

Suitable for the following vehicles:

Audi A1 (8X) 07/2010 - 11/2014

Audi A1 (8X) 11/2014 - 04/2018*

Audi A3 (8P) 05/2003 - 04/2005

Audi A3 (8P) 10/2004 - 04/2013

Audi A4 (B6/8E) 11/2000 - 10/2005

Audi A4 (B7/8E) 11/2004 - 02/2009

Audi A5 (8T/8F) 06/2007 - 10/2011

Audi A6 (C5/B4) 05/2001 - 03/2006

Audi Q3 (8U) 10/2011 - 11/2014

Audi Q3 (8U) 02/2015 - 06/2018

Audi Q5 (8R) 09/2008 - 05/2012

Audi Q5 (8R) 09/2012 - 01/2017

Audi R8 (42) 04/2007 - 05/2015

Audi TT (8J) 04/2006 - 04/2010

Audi TT (8J) 08/2010 - 03/2014

SEAT

Seat Alhambra (7N) 10/2010 - 04/2015

Seat Altea (5P) 06/2004 - 03/2009

Seat Altea (5P) 04/2009 - 07/2015

Seat Exeo (3R) 03/2009 - 05/2013

Seat Ibiza (6J) 06/2008 - 02/2012

Seat Ibiza (6J) 03/2012 - 06/2015

Seat Leon (1P) 09/2005 - 03/2009

Seat Leon (1P) 04-2009 - 11/2012

Seat Mii (AA) 12/2011 - 06/2019

Seat Toledo (5P) 01/2005 - 10/2009

Seat Toledo (NH) 03/2013 - 05/2015

Skoda

Skoda Citigo (AA) 06/2012 - 05/2017

Skoda Fabia (5J) 03/2007 - 04/2010

Skoda Fabia (5J) 06/2010 - 06/2014

Skoda Octavia (1Z) 06/2004 - 05/2009

Skoda Octavia (1Z) 01/2009 - 03/2013

Skoda Rapid (NH) 10/2012 - 04/2015

Skoda Roomster (5J) 09/2006 - 02/2015

Skoda Superb (3T) 07/2008 - 05/2013

Skoda Superb (3T) 06/2013 - 05/2015

Skoda Yeti (5L) 08/2009 - 10/2013

GREEN WHITE

VW Amarok (2H) 07/2010 - 08/2016

VW Beetle (16) 11/2011 - 06/2016

VW Caddy III (2K) 10/2003 - 08/2010

VW Caddy III (2K) 092010 - 04/2015

VW Caravelle (7H) 10/2004 - 09/2009

VW Caravelle (7H) 09/2009 - 05/2015

VW CC (3C/35) 06/2008 - 11/2011

VW CC (3C/35) 02/2012 - 08/2016

VW Eos (1F) 05/2006 - 10/2010

VW Eos (1F) 10/2010 - 04/2015

VW Fox (5Z) 04/2005 - 06/2011

VW Golf V (1K) 11/2003 - 09/2008

VW Golf V (1KM) 06/2007 - 10/2009

VW Golf V Plus (1KP) 01/2005 - 02/2009

VW Golf VI (1K) 11/2008 - 09/2012

VW Golf VI (1KM) 11/2009 - 04/2013

VW Golf VI Plus (1KP) 03/2009 - 01/2014

VW Jetta III (1K5/1KM) 09/2005 - 10/2010

VW Jetta IV (162) 01/2011 - 08/2014

VW Multivan (7H) 02/2003 -09/2009

VW Multivan (7H) 09/2009 - 05/2015

VW Passat B6 (3C2) 11/2005 - 07/2010

VW Passat B6 (3C5) 08/2005 - 07/2010

VW Passat B7 (3C/362) 11/2010 - 10/2014

VW Phaeton (3D) 05/2007 - 05/2010

VW Polo IV (9N) 03/2005 - 03/2009

VW Polo V (6R) 06/2009 - 01/2014

VW Scirocco III (13) 08/2008 - 04/2014

VW Sharan II (7N) 08/2010 - 04/2015

VW T5 Transporter (7H) 08/2003 - 09/2009

VW T5 Transporter (7H) 09/2009 - 05/2015

VW T6 (7HC) 07/2015 - 08/2019

VW Tiguan I (5N) 10/2007 - 02/2011

VW Tiguan I (5N) 06/2011 - 04/2016

VW Touareg I (7L) 06/2003 - 11/2006

VW Touareg I (7L) 11/2006 - 02/2010

VW Touran (1T) 01/2003 - 09/2006

VW Touran (1T) 11/2006 - 04/2010

VW Touran (1T) 08/2010 - 04/2015

VW UP! (AA) 12/2011 - 06/2016

References:

*Vehicles with OEM Chorus unit with monochrome display
