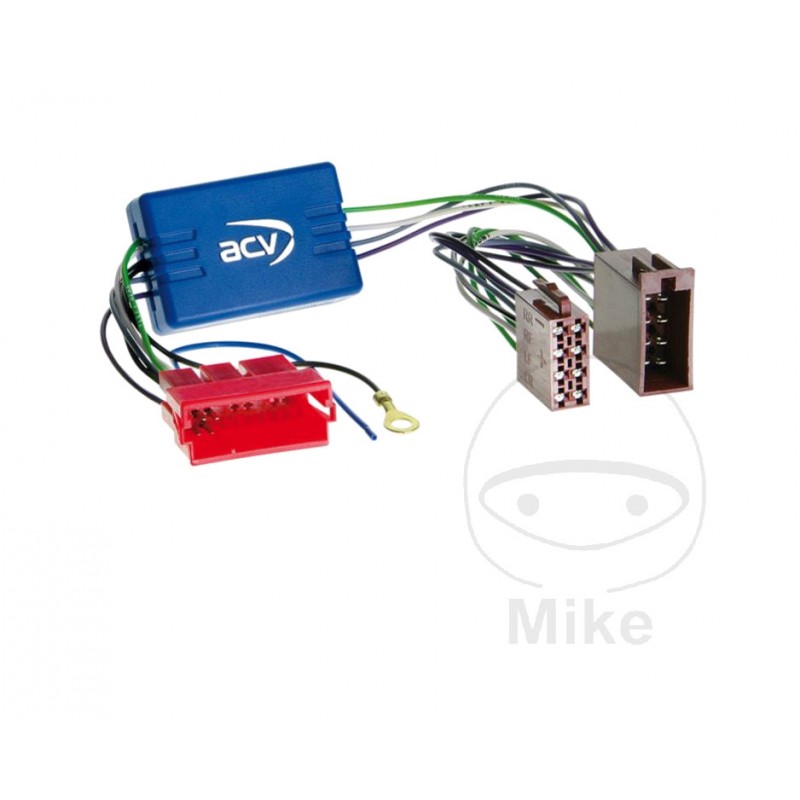

ACV Sound system adapter cable VAG 1940534

VAG Mini ISO 2/4 Channel Active System Adapter

Active System Adapters are used to maintain factory-installed sound systems.

This allows commercially available retrofit radios to be connected to the vehicle's own active system.

Note:

Connection: OEM Mini ISO Sound System > Front/Rear Speakers Output.

2 and 4 channel OEM sound system

Vehicles without Nokia DSP system

Blue: +12V remote amplifier

Black: ground (terminal 30)

Suitable for the following vehicles:

Audi A2 (8Z) 11/1999 - 07/2005

Audi A3 (8P) 03/2003 - 12/2006 (only with 1 DIN radio)

Audi A3 (8L) 09/1996 - 06/2003

Audi A4 (B5) 10/1994 - 09/2001

Audi A4 (B6) 11/2000 - 11/2004 (only with 1 DIN radio)

Audi A4 (B7) 11/2004 - 02/2009 (only with 1 DIN radio)

Audi A6 (4B/C5) 04/1997 - 03/2005 (without RNS-E)

Audi A8 (D2) 05/1994 - 07/2002

Audi TT (8N) 10/1998 - 06/2006

Seat - all models with 20pin Mini-ISO
