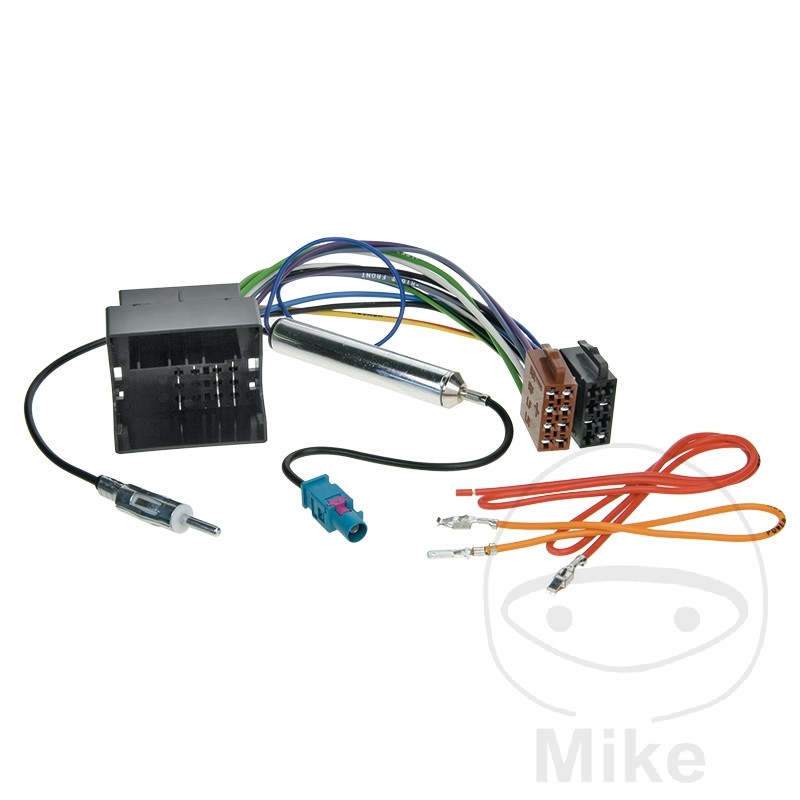

ACV Adapter cable with phantom power DIN VAG 1940292
€18.44
Tax included
ISO adapter cable Audi / Seat / Skoda / VW
Quadlock > ISO
Fakra > DIN phantom power
ISO adapter cables are used for the passive connection of retrofit devices to the factory plugs in the installation slot of the radio.
Depending on the vehicle and equipment, the following signals are provided:
12V DC
Ignition 12V
floor
LIGHT
remote antenna
Connection for front and rear speakers
In the case of vehicles with different equipment, missing signals may need to be connected to suitable tapping points in the vehicle (for example, the fuse box) or additional adaptations/interfaces may have to be used:
CAN bus interfaces
LFB interfaces
sound system adapter
camera adapter
The signals must be checked before connection.
Note:
Connection: VAG Quadlock 40-pin plug
Connection: Fakra Z(m) > DIN(m)
Audi / Seat Exeo vehicles with 2-DIN OEM unit
red: +12V ignition current terminal 15 fuse fuse box
orange: +12V light / dimmer terminal 58 fuse box with fuse
For the following application:
Radio power/speaker connection cable
For the following vehicles:
Audi A1 (8X) 07/2010 - 04/2018*
Audi A3 (8P) 05/2003 - 04/2005**
Audi A3 (8P) 10/2004 - 04/2013**
Audi A4 (B6 (8E) 11/2000 - 10/2005**
Audi A4 (B7 (8E) 11/2004 - 02/2009**
Audi A5 (8T/8F) 06/2007 - 10/2011**
Audi A6 (C5/B4) 05/2001 - 03/2006**
Audi Q3 (8U) 10/2011 - 11/2014**
Audi Q3 (8U) 02/2015 - 06/2018**
Audi Q5 (8R) 09/2008 - 05/2012**
Audi Q5 (8R) 09/2012 - 01/2017**
Audi R8 (42) 04/2007 - 05/2015**
Audi TT (8J) 04/2006 - 04/2010**/****
Audi TT (8J) 08/2010 - 03/2014**/****
SEAT
Seat Alhambra (7N) 10/2010 - 04/2015
Seat Altea (5P) 06/2004 - 03/2009
Seat Altea (5P) 04/2009 - 07/2015
Seat Exeo (3R) 03/2009 - 05/2013**
Seat Ibiza (6J) 06/2008 - 02/2012
Seat Ibiza (6J) 03/2012 - 06/2015
Seat Leon (1P) 09/2005 - 03/2009
Seat Leon (1P) 04-2009 - 11/2012
Seat Mii (AA) 12/2011 - 06/2019***
Seat Toledo (5P) 01/2005 - 10/2009
Seat Toledo (NH) 03/2013 - 05/2015
Skoda
Skoda Citigo (AA) 06/2012 - 05/2017***
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013
Skoda Rapid (NH) 10/2012 - 04/2015
Skoda Roomster (5J) 09/2006 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013
Skoda Superb (3T) 06/2013 - 05/2015
Skoda Yeti (5L) 08/2009 - 10/2013
GREEN WHITE
VW Amarok (2H) 07/2010 - 08/2016
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 092010 - 04/2015
VW Caravelle (7H) 10/2004 - 09/2009***
VW Caravelle (7H) 09/2009 - 05/2015***
VW CC (3C/35) 06/2008 - 11/2011
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Fox (5Z) 04/2005 - 06/2011
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 12/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI (1K) 06/2011 - 2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta III (1K5/1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Multivan (7H) 02/2003 -09/2009***
VW Multivan (7H) 09/2009 - 05/2015***
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Phaeton (3D) 05/2007 - 05/2010
VW Polo IV (9N) 03/2005 - 03/2009
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 08/2003 - 09/2009***
VW T5 Transporter (7H) 09/2009 - 05/2015***
VW T6 (7HC) 07/2015 - 08/2019
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touareg I (7L) 06/2003 - 11/2006***
VW Touareg I (7L) 11/2006 - 02/2010***
VW Touran (1T) 01/2003 - 09/2006
VW Touran (1T) 11/2006 - 04/2010
VW Touran (1T) 08/2010 - 04/2015
VW UP! (AA) 12/2011 - 06/2016***
References:
*Vehicles with OEM Chorus unit with monochrome display
**Vehicles with OEM sound system > item: 13-1424-26
***Vehicles without OEM sound system
****Vehicles without OEM sound system CAN Activation
