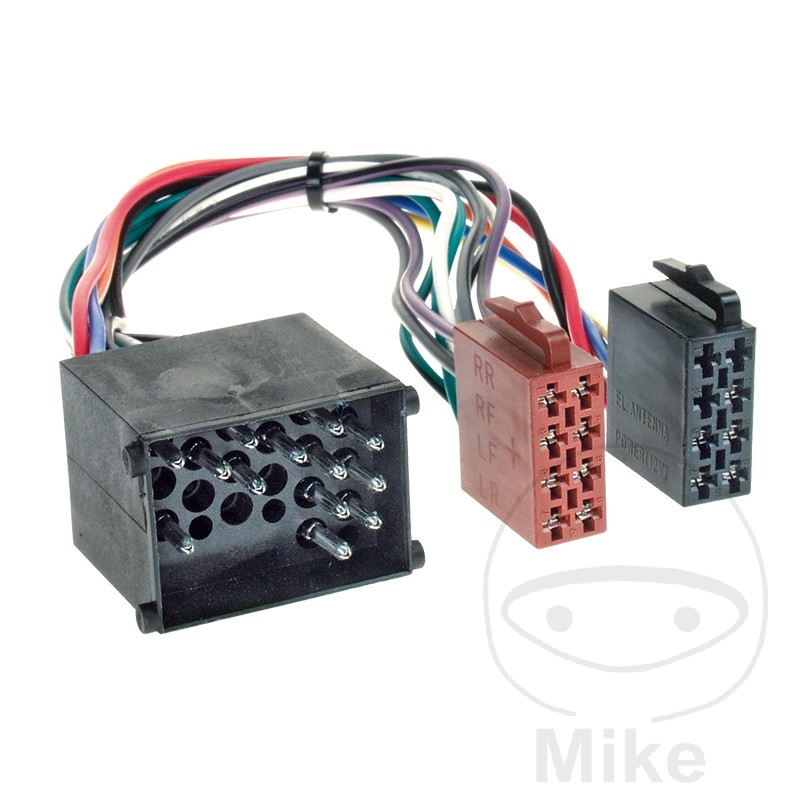

ACV Insulated adapter cable 17 poles 1940284

ISO adapter cable BMW/Land Rover/Mini/Rover

This adapter allows radio conversion from an OEM unit to a standard DIN unit.

ISO adapter cables are used for the passive connection of retrofit devices to the factory plugs in the installation slot of the radio.

Depending on the vehicle and equipment, the following signals are provided:

+12 V direct current (terminal 30)

+12 V on (terminal 15)

Ground (terminal 31)

Light (terminal 58)

remote antenna

Front/rear speaker connection

Note:

Connection: BMW 17-pin connector

In the case of vehicles with different equipment, missing signals may need to be connected to suitable outlet points in the vehicle (e.g. fuse box) or additional adaptations/interfaces may have to be used:

CAN bus interfaces

LFB interfaces

sound system adapter

camera adapter

The signals must be checked before connection.

For the following vehicles:

BMW 3 Series (E30) 09/1987 - 03/1994

BMW 3 Series (E36) Compact 1990 - 2000

BMW 3 Series (E36) 1990 - 2000

BMW 3 Series (E46) 02/1998 - 01/2007

BMW 5 Series (E34) 01/1988 - 06/1996

BMW 5 Series (E39) 09/1995 - 09/2004

BMW 7 Series (E38) 06/1994 - 08/2001

BMW X5 (E53) 11/1999 - 09/2006

BMW Z3 09/1995 - 07/2002

BMW Z8 03/2000 - 07/2003

BMW Mini 09/2000 - 12/2002

LAND ROVER

Land Rover Defender 2 04/2001 -

Land Rover Discovery 2 2001 - 09/2004

Land Rover Freelander 2001 - 2003

ROVER

Rover 25 2000 -

Rover 45 1999 -

Rover 75 1999-


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW/
COMPATIBLE WITHLAND ROVER
